Product Details

Description

Features:

.600mAOUTPUTCURRENTCAPABILITYPER CHANNEL
.1.2APEAKOUTPUTCURRENT(nonrepetitive) PERCHANNEL
.ENABLEFACILITY
.OVERTEMPERATUREPROTECTION
.LOGICAL!0!INPUTVOLTAGEUPTO1. (highnoiseimmunity)
.SEPARATEHIGHVOLTAGEPOWERSUPPLY (upto44V)

Pinout

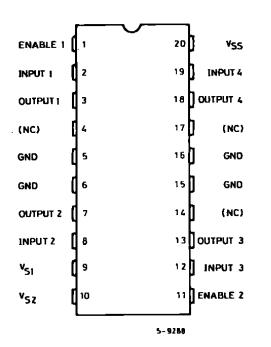

Connection Diagram

Specifications

Symbol	Symbol	Value	Unit
V_S	SupplyVoltage	50	V
V_SS	LogicSupplyVoltage	7	V
V_i	InputVoltage	7	V
V_EN	EnableVoltage	7	V
I_out	PeakOutputCurrent(non-repetitivet=5ms	1.2	A
Pt_ot	TotalPowerDissipationatTgroun-pin =80	5	W
T_stg,T_j	StorageandJunctionTemperature	-40to15

Description

TheL293Cisamonolithichighvoltage,highcurrent integratedcircuitfourchanneldriverina20pinDIP. ItisdesignedtoacceptstandardTTLorDTLinput logiclevelsanddriveinductiveloads(suchasre- lays,solenoids,DCandsteppingmotors)and switchingpowertransistors.
L293C may easily be used as a dual H-bridge driver:separatechipenableandhighvoltagepower supplypinsareprovidedforeachH-bridge.Inaddi- tion,aseparatepowersupplyisprovidedforthe logicsectionofthedevice.

TheL293Cisassembledina20leadplasticpack- agewhichhas4centerpinsconnectedtogetherand usedforheatsinking.
