Product Details

Description

Features:

`High Emitter-Base Voltage : V_EBO=25V(Min.)

`High Reverse hFE: Reverse h_FE=150(Typ.) (V_CE=-2V, I_C=-4mA)

`Low on Resistance : R_ON=1 (Typ.), (I_B=5mA)

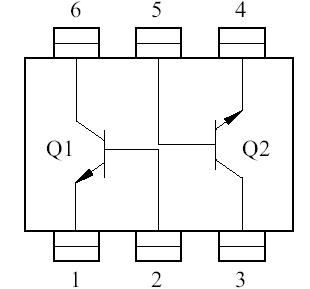

Pinout

Connection Diagram

Specifications

CHARACTERISTIC	SYMBOL	RATING	UNIT
Collector-Base Voltage	V_CBO	50	V
Collector-Emitter Voltage	V_CEO	20	V
Emitter-Base Voltage	V_EBO	25	V
Collector Current	I_C	300	mA
Base Current	I_B	60	mA
Collector Power Dissipation	P_C*	0.9	mW
Junction Temperature	T_j	150
Storage Temperature Range	T_stg	-55~150
