Features:

CPU
• SAM8 CPU core
Memory
• 8/16-Kbyte internal program memory (ROM)
• 272-byte general-purpose register area
Instruction Set
• 78 instructions
• IDLE and STOP instructions added for powerdown
modes
Instruction Execution Time
• 500 ns minimum (with 12 MHz CPU clock)
Interrupts
• Nine interrupt sources
• Nine interrupt vectors
• Six interrupt levels
• Fast interrupt processing for a select level
General I/O
• Four I/O ports (total 28 pins):
8-Bit Basic Timer
• Programmable timer for oscillation stabilization
interval control or watchdog timer functions
• Three selectable internal clock frequencies
Timer/Counters
• One 8-bit general-purpose timer/counter with programmable operating modes and the following clock source options:
- Two selectable internal clock frequencies
• One 8-bit timer with interval operating mode
• One 8-bit counter with the following clock source options:
- Two selectable internal clock frequencies
- Hsync (or Csync) input from the sync
processor block
- External clock source
Pulse Width Modulator
• Seven 8-bit PWM modules:
- 8-bit basic frame
- Four push-pull and three n-channel,
open-drain output channels
- Selectable clock frequencies: 46.875 kHz at
12 MHz fosc.
Sync Processor
• Detection of sync input signals (Vsync-I, Hsync-I, and Csync-I)
• Sync signal separation and output (Hsync-O, Vsync-O, and Clamp-O)
• Pseudo sync signal output
• Programmable clamp signal output
DDC and Multi-Master IIC-Bus
• Serial peripheral interface
• Support for display data channel (DDC)
Oscillator Frequency
• 6 MHz to 12 MHz external crystal oscillator
• Interval Max. 12MHz CPU clock
Operating Temperature Range
• 40°C to + 85°C
Operating Voltage Range
• 4.5 V to 5.5 V
Package Types
• 42-pin SDIP, 44-pin QFP

Pinout

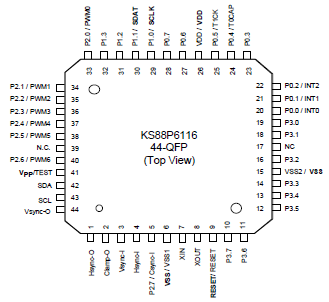

Connection Diagram

Specifications

]>

Parameter	Symbol	Conditions	Rating	Unit
Supply voltage	V_DD		0.3 to + 7.0	V
Input voltage	V_I1V_I2	Type C (n-channel, open-drain)	0.3 to + 10	V
Input voltage	V_I1V_I2	All port pins except V_I1	0.3 to V_DD + 0.3	V
Output voltage	V_O	All output pins	0.3 to V_DD+ 0.3	V
Output current High	I_OH	One I/O pin active	10	mA
Output current High	I_OH	All I/O pins active	60	mA
Output current Low	I_OH	One I/O pin active	+ 30	mA
		Total pin current except port 3	+ 100
		Sync-processor I/O pins and IIC-bus clock and data pins	+ 150
Operating temperature	T_A		40 to + 85
Storage temperature	T_STG		65 to + 150

Description

The KS88P6116 single-chip 8-bit microcontroller is based on the powerful SAM8 CPU architecture. The internal register file is logically expanded to increase the on-chip register space. The KS88P6116 have 8/16 K bytes of onchip program ROM.

Following Samsung's modular design approach, the following peripherals were integrated with the SAM8 core:
- Four programmable I/O ports (total 28 pins)
- One 8-bit basic timer for oscillation stabilization and watchdog functions
- One 8-bit general-purpose timer/counter with selectable clock sources
- One 8-bit counter with selectable clock sources, including Hsync or Csync input
- One 8-bit timer for interval mode
- PWM block with seven 8-bit PWM circuits
- Sync processor block (for Vsync and Hsync I/O, Csync input, and Clamp signal output)
- Multi master IIC-bus with DDC support.

The KS88P6116 are a versatile microcontroller that is ideal for use in multi-sync monitors or in general-purpose applications that require sophisticated timer/counter, PWM, sync signal processing, and multi-master IIC-bus support with DDC. It is available in a 42-pin SDIP or a 44-pin QFP package.
