KS88P4716

Features: CPU• SAM87RC CPU coreMemory• 272-byte general purpose register area• 8/16-Kbyte internal program memoryInstruction Set• 79 instructions• IDLE and STOP instructions added for power-down modesInstruction Execution Time• 333 ns at 12 MHz fOSC (minimum)Int...

product image

KS88P4716 Picture
See larger image
SeekIC No. : 004387621 Detail

KS88P4716: Features: CPU• SAM87RC CPU coreMemory• 272-byte general purpose register area• 8/16-Kbyte internal program memoryInstruction Set• 79 instructions• IDLE and STOP instruc...

KS88P4716 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS88P4716
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM87RC CPU core
Memory
• 272-byte general purpose register area
• 8/16-Kbyte internal program memory
Instruction Set
• 79 instructions
• IDLE and STOP instructions added for power-down modes
Instruction Execution Time
• 333 ns at 12 MHz fOSC (minimum)
Interrupts
• 14 interrupt sources and 14 vectors
• Eight interrupt levels
• Fast interrupt processing
General I/O
• Five I/O ports (total 36 pins)
• Four bit-programmable ports
• Two n-channel open-drain output port
Timer/Counters
• One 8-bit basic timer for watchdog function
• One 8-bit timer/counter with three operating modes (timer 0)
• One 16-bit general-purpose timer/counters with three operation modes (timer 1)
UART
• One UART module
• Full duplex serial I/O interface with three UART modes
A/D Converter
• Eight analog input pins
• 10-bit conversion resolution
• 20 s conversion time (10 MHz CPU clock)
Buzzer Frequency Output
• 200 Hz to 20 kHz signal can be generated
Oscillator Frequency
• 1 MHz to 12 MHz external crystal oscillator
• Maximum 12 MHz CPU clock
Operating Temperature Range
• 40°C to + 85°C
Operating Voltage Range
• 1.8 V to 5.5 V
Package Types
• 42-pin SDIP, 44-pin QFP


Pinout

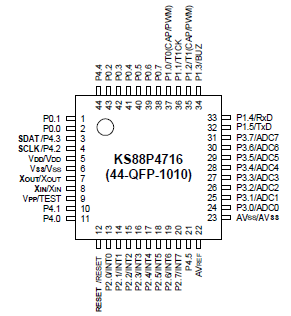

Connection Diagram

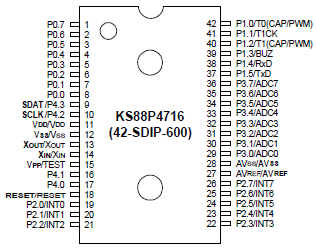

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VI
All ports
0.3 to VDD +10
V
Output voltage
VO
All output ports
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
18
mA
All I/O pins active
60
Output current Low
IOL
One I/O pin active
+30
mA
Total pin current for port 1, 2, and 3
+100
Total pin current for ports 0 and 4
+ 200
Operating temperature
TA
40 to + 85
Storage temperature
TSTG
65 to + 150



Description

The KS88P4716 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the S88C4708/C4716 microcontroller. It has an on-chip OTP ROM instead of a masked ROM. The EPROM is accessed by serial data format.

The KS88P4716 is fully compatible with the KS88C4708/C4716, both in function in D.C. electrical characteristics and in pin configuration. Because of its simple programming requirements, the KS88P4716 is ideal as an evaluation chip for the KS88C4708/C4716.
