KS88P2148

Features: CPU• SAM8 CPU coreMemory• Data memory: 1040-byte of internal register file (Excluding LCD RAM)• Program memory: 48-Kbyte internal programmemory (ROM)External Interface• 64-Kbyte external data memory areaInstruction Execution Time• 750 ns at 8 MHz (minimum, M...

product image

KS88P2148 Picture
See larger image
SeekIC No. : 004387616 Detail

KS88P2148: Features: CPU• SAM8 CPU coreMemory• Data memory: 1040-byte of internal register file (Excluding LCD RAM)• Program memory: 48-Kbyte internal programmemory (ROM)External Interface...

KS88P2148 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS88P2148
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM8 CPU core
Memory
• Data memory: 1040-byte of internal register file (Excluding LCD RAM)
• Program memory: 48-Kbyte internal program memory (ROM)
External Interface
• 64-Kbyte external data memory area
Instruction Execution Time
• 750 ns at 8 MHz (minimum, Main oscillator)
• 183 ms at 32,768 Hz (minimum, Sub oscillator)
Interrupts
• 7 interrupt levels and 19 interrupt sources
• 19 vectors
• Fast interrupt processing feature (for one selected interrupt level)
I/O Ports
• Five 8-bit I/O ports (P0-P4) and one 7-bit I/O port (P5) for a total of 47 bit-programmable pins 8-Bit Basic Timer
• One programmable 8-bit basic timer (BT) for oscillation stabilization control or watchdog timer (software reset) function
Watch Timer
• Time internal generation: 3.91 ms, 0.5 s at 32,768 Hz
• Four frequency outputs to BUZ pin
• Clock source generation for LCD
Timers and Timer/Counters
• One 8-bit timer/counter (Timer 0) with three operating modes: Interval, Capture, and PWM
• One 16-bit timer/counter (Timer 1) with two 8-bit timer/counter modes
LCD Controller/Driver
• UP to 32 segment pins
• 3, 4, and 8 common selectable
• Choice of duty cycle
• All dots can be switched on/off
• Internal resistor circuit for LCD bias Serial Port
• One synchronous SIO
A/D Converter
• 8-bit conversion resolution ´ 4 channel
• 34 ms conversion time(4 MHz CPU clock, fxx/4)
Oscillation Sources
• Crystal, ceramic, or RC for main system clock
• Crystal or external oscillator for subsystem clock
• Main system clock frequency: 8 MHz
• Subsystem clock frequency: 32.768 kHz
Power-Down Modes
• Main idle mode (only CPU clock stops)
• Sub idle mode
• Stop mode (main/sub system oscillation stops)
Operating Temperature Range
• 40  to + 85
Operating Voltage Range
• 2.0 V to 5.5 V at 32 kHz (sub clock)-6 MHz (main clock)
• 2.2 V to 5.5 V at 8 MHz
Package Type
• 80-pin TQFP, 80-pin QFP


Pinout

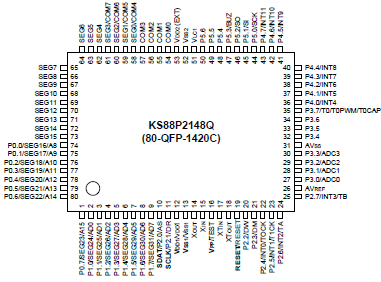

Connection Diagram
Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VIN
-
0.3 to VDD + 0.3
V
Output voltage
VO
All output pins
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
-18
mA
All I/O pins active
-60
Output current Low
IOL
One I/O pin active
+ 30 (peak value)
mA
+ 15 (note)
Ports 0, 1, 2, and 3
+ 100 (peak value)
+ 60 (note)
Ports 4 and 5
+ 100 (peak value)
+ 60 (note)
Operating temperature
TA
-
40 to + 85
Storage temperature
TSTG
-
65 to + 150

NOTE: The values for Output Current Low (IOL) are calculated as Peak Value * Duty .


Description

The KS88P2148 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS88C2148 microcontroller. It has an on-chip OTP ROM instead of a masked ROM. The EPROM is accessed by serial data format.

The KS88P2148 is fully compatible with the KS88C2148, both in function and in pin configuration. Because of its simple programming requirements, the KS88P2148 is ideal as an evaluation chip for the KS88C2148.
