Features:

CPU
• SAM87 CPU core
Memory
• 16-Kbyte internal program memory (ROM)
• 317-byte internal register file
Instruction Set
• 78 instructions
• IDLE and STOP instructions added for powerdown
modes
Instruction Execution Time
• 750 ns at 8-MHz fOSC (minimum)
Interrupts
• Six interrupt levels and 18 interrupt sources
• 15 vectors (14 sources have a dedicated vector address and four sources share a single vector)
• Fast interrupt processing feature (for one
selected interrupt level)
I/O Ports
• Three 8-bit I/O ports (P0P2) and one 2-bit port
(P3) for a total of 26 bit-programmable pins
• Twelve input pins for external interrupts
Timers and Timer/Counters
• One programmable 8-bit basic timer (BT) for
oscillation stabilization control or watchdog timer (software reset) function
• One 8-bit timer/counter (Timer 0) with three operating modes; Interval, Capture and PWM
• One 16-bit timer/counter (Timer 1) with two operating modes; Interval and Capture Carrier Frequency Generator
• One 8-bit counter with auto-reload function and one-shot or repeat control (Counter A) Operating Temperature Range
• 20°C to + 85°C
Operating Voltage Range
• 2.0 V to 5.5 V at 4 MHz fOSC
• 2.4 V to 5.5 V at 8 MHz fOSC
Package Type
• 32-pin SOP
• 32-pin SDIP


Pinout

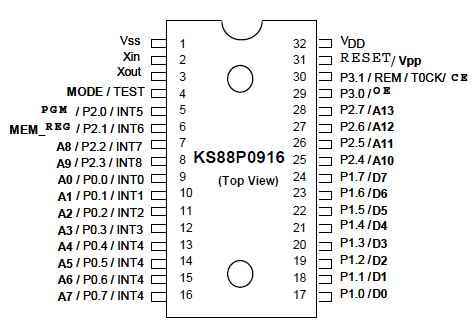

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VIN
-
0.3 to VDD + 0.3
V
Output voltage
VO
All output pins
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
18
mA
All I/O pins active
60
Output current Low
IOL
One I/O pin active
+ 30
mA
Total pin current for ports 0, 1, and 2
+ 100
Total pin current for port 3
+ 20
Operating temperature
TA
-
20 to + 85
Storage temperature
TSTG
-
65 to + 150



Description

The KS88P0916 single-chip CMOS microcontroller is fabricated using a highly advanced CMOS process and is based on Samsung's newest CPU architecture.

The KS88C0916 is the microcontroller which has 16- Kbytes mask-programmable ROM.

The KS88P0916 is the microcontroller which has 16- Kbytes one-time-programmable EPROM.

Using a proven modular design approach, Samsung engineers developed the KS88P0916 by integrating the following peripheral modules with the powerful SAM87 core:
- Four programmable I/O ports, including three 8-bit ports and one 2-bit port, for a total of 26 pins.
- Twelve bit-programmable pins for external interrupts.
- One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
- One 8-bit timer/counter and one 16-bit timer/counter with selectable operating modes.
- One 8-bit counter with auto-reload function and one-shot or repeat control.

The KS88P0916 is a versatile general-purpose microcontroller. It is currently available in a 32-pin SOP and SDIP package.
