KS88P0716

Features: CPU• SAM87 CPU coreMemory• 272-byte general purpose register area• 16-Kbyte internal program memory• ROM-less operating modeExternal Interface• 64-Kbyte external data memory area• 64-Kbyte external program memory area (ROMless mode)Instruction Set̶...

product image

KS88P0716 Picture
See larger image
SeekIC No. : 004387614 Detail

KS88P0716: Features: CPU• SAM87 CPU coreMemory• 272-byte general purpose register area• 16-Kbyte internal program memory• ROM-less operating modeExternal Interface• 64-Kbyte exter...

KS88P0716 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS88P0716
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM87 CPU core
Memory
• 272-byte general purpose register area
• 16-Kbyte internal program memory
• ROM-less operating mode
External Interface
• 64-Kbyte external data memory area
• 64-Kbyte external program memory area (ROMless mode)
Instruction Set
• 78instructions
• IDLE and STOP instructions for power-down mode
Instruction Execution Time
• 500 ns at 12 MHz fCPU (Min.)
Interrupts
• 17 interrupt sources
• 17 interrupt vectors
• Eight interrupt levels
• Fast interrupt processing
General I/O
• Four nibble-programmable ports
• One bit-programmable port
• Two bit-programmable ports for external interrupts
Timers
• Two 8-bit timers with interval timer and PWM modes
Timer/Counters
• Two 16-bit general-purpose timer/counters
Basic Timer
• One 8-bit basic timer (BT) for oscillation stabilization control and watch dog timer function.
Serial Port
• One synchronous operating mode and three fullduplex asynchronous UART modes Operating Temperature Range
• 40 to + 85
Operating Voltage Range
• 2.7 V to 5.5 V
Package Types
• 64-pin SDIP, 64-pin QFP


Pinout

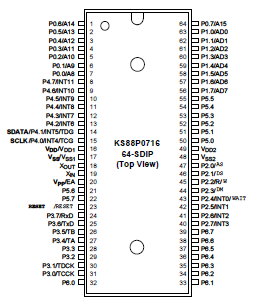

Connection Diagram



Connection Diagram












Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VI
 All ports (in input mode)
0.3 to VDD +0.3
V
Output voltage
VO
 All ports (in output mode)
0.3 to VDD + 0.3
V
Output current High
IOH
 One I/O pin active
10
mA
All I/O pins active
60
Output current Low
IOL
 One I/O pin active
+30
mA
Total pin current for ports 04
+100
Total pin current for ports 5 and 6
+ 100
Operating temperature
TA

40 to + 85
Storage temperature
TSTG
65 to + 150



Description

The KS88P0716 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS88C0716 microcontrollers. It has an on-chip EPROM instead of masked ROM. The EPROM is accessed by serial data format.
