Features:

CPU
• SAM8 CPU core
Memory
• Data memory: 1040-byte of internal register file (Excluding LCD RAM)
• Program memory: 48-Kbyte internal program memory (ROM)
External Interface
• 64-Kbyte external data memory area
Instruction Execution Time
• 750 ns at 8 MHz (minimum, Main oscillator)
• 183 ms at 32,768 Hz (minimum, Sub oscillator)
Interrupts
• 7 interrupt levels and 19 interrupt sources
• 19 vectors
• Fast interrupt processing feature (for one selected interrupt level)
I/O Ports
• Five 8-bit I/O ports (P0-P4) and one 7-bit I/O port (P5) for a total of 47 bit-programmable pins 8-Bit Basic Timer
• One programmable 8-bit basic timer (BT) for oscillation stabilization control or watchdog timer (software reset) function
Watch Timer
• Time internal generation: 3.91 ms, 0.5 s at 32,768 Hz
• Four frequency outputs to BUZ pin
• Clock source generation for LCD
Timers and Timer/Counters
• One 8-bit timer/counter (Timer 0) with three operating modes: Interval, Capture, and PWM
• One 16-bit timer/counter (Timer 1) with two 8-bit timer/counter modes
LCD Controller/Driver
• UP to 32 segment pins
• 3, 4, and 8 common selectable
• Choice of duty cycle
• All dots can be switched on/off
• Internal resistor circuit for LCD bias Serial Port
• One synchronous SIO
A/D Converter
• 8-bit conversion resolution ´ 4 channel
• 34 ms conversion time(4 MHz CPU clock, fxx/4)
Oscillation Sources
• Crystal, ceramic, or RC for main system clock
• Crystal or external oscillator for subsystem clock
• Main system clock frequency: 8 MHz
• Subsystem clock frequency: 32.768 kHz
Power-Down Modes
• Main idle mode (only CPU clock stops)
• Sub idle mode
• Stop mode (main/sub system oscillation stops)
Operating Temperature Range
• 40  to + 85
Operating Voltage Range
• 2.0 V to 5.5 V at 32 kHz (sub clock)-6 MHz (main clock)
• 2.2 V to 5.5 V at 8 MHz
Package Type
• 80-pin TQFP, 80-pin QFP


Pinout

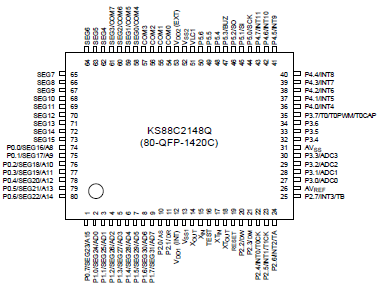

Connection Diagram

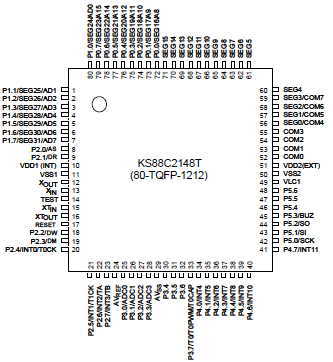

Connection Diagram



Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VIN
-
0.3 to VDD + 0.3
V
Output voltage
VO
All output pins
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
-18
mA
All I/O pins active
-60
Output current Low
IOL
One I/O pin active
+ 30 (peak value)
mA
+ 15 (note)
Ports 0, 1, 2, and 3
+ 100 (peak value)
+ 60 (note)
Ports 4 and 5
+ 100 (peak value)
+ 60 (note)
Operating temperature
TA
-
40 to + 85
Storage temperature
TSTG
-
65 to + 150

NOTE: The values for Output Current Low (IOL) are calculated as Peak Value * Duty .


Description

The KS88P2148 is an OTP (One Time Programmable) version of the KS88C2148 microcontroller. The KS88P2148 microcontroller has an on-chip 48-Kbyte one-time-programmable EPROM instead of a masked ROM.

The KS88P2148 is comparable to the KS88C2148, both in function and in pin configuration.
