Features:

CPU
• SAM87 CPU core
Memory
• 272-byte general purpose register area
• 16-Kbyte internal program memory
• ROM-less operating mode
External Interface
• 64-Kbyte external data memory area
• 64-Kbyte external program memory area (ROMless mode)
Instruction Set
• 78instructions
• IDLE and STOP instructions for power-down mode
Instruction Execution Time
• 500 ns at 12 MHz fCPU (Min.)
Interrupts
• 17 interrupt sources
• 17 interrupt vectors
• Eight interrupt levels
• Fast interrupt processing
General I/O
• Four nibble-programmable ports
• One bit-programmable port
• Two bit-programmable ports for external interrupts
Timers
• Two 8-bit timers with interval timer and PWM modes
Timer/Counters
• Two 16-bit general-purpose timer/counters
Basic Timer
• One 8-bit basic timer (BT) for oscillation stabilization control and watch dog timer function.
Serial Port
• One synchronous operating mode and three fullduplex asynchronous UART modes Operating Temperature Range
• 40 to + 85
Operating Voltage Range
• 2.7 V to 5.5 V
Package Types
• 64-pin SDIP, 64-pin QFP


Pinout

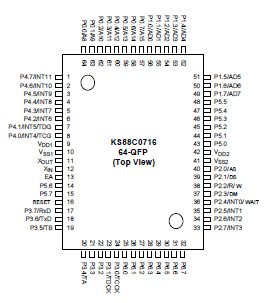

Connection Diagram

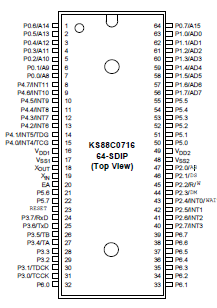

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VI
 All ports (in input mode)
0.3 to VDD +0.3
V
Output voltage
VO
 All ports (in output mode)
0.3 to VDD + 0.3
V
Output current High
IOH
 One I/O pin active
10
mA
All I/O pins active
60
Output current Low
IOL
 One I/O pin active
+30
mA
Total pin current for ports 04
+100
Total pin current for ports 5 and 6
+ 100
Operating temperature
TA

40 to + 85
Storage temperature
TSTG
65 to + 150



Description

The KS88C0716 microcontroller is also available in OTP (One Time Programmable) version, KS88P0716.
