KS88C0116

Features: CPU• SAM8 CPU coreMemory• 272-byte general purpose register area• 16-Kbyte internal program memory• ROM-less operating modeExternal Interface• 64-Kbyte external data memory area• 64-Kbyte external program memory area (ROM-less mode)Instruction Set̶...

product image

KS88C0116 Picture
See larger image
SeekIC No. : 004387586 Detail

KS88C0116: Features: CPU• SAM8 CPU coreMemory• 272-byte general purpose register area• 16-Kbyte internal program memory• ROM-less operating modeExternal Interface• 64-Kbyte extern...

KS88C0116 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS88C0116
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM8 CPU core
Memory
• 272-byte general purpose register area
• 16-Kbyte internal program memory
• ROM-less operating mode
External Interface
• 64-Kbyte external data memory area
• 64-Kbyte external program memory area (ROM-less mode)
Instruction Set
• 79 instructions
• IDLE and STOP instructions added for power-down modes
Instruction Execution Time
• 600 ns at 20 MHz fOSC (min.)
Interrupts
• 18 interrupt sources
• 18 interrupt vectors
• Eight interrupt levels
• Fast interrupt processing
General I/O
• Seven I/O ports (54 pins):
• Three nibble-programmable ports
• One bit-programmable port
• Two bit-programmable ports for external interrupts
• One n-channel, open-drain output port
Timer/Counters
• Two 8-bit timers with interval timer and PWM modes
• Two 16-bit general-purpose timer/counters
Backup Timer
• 16-bit backup timer
Serial Port
• One synchronous operating mode and three full-duplex asynchronous UART modes
Operating Temperature Range
• 20  to + 85
Operating Voltage Range
• 4.5 V to 5.5 V
Package Types
• 64-pin SDIP, 64-pin QFP


Pinout

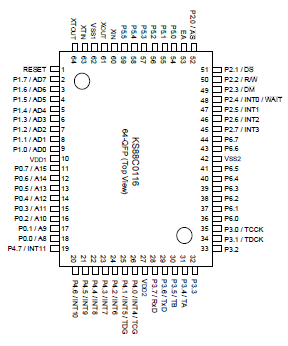

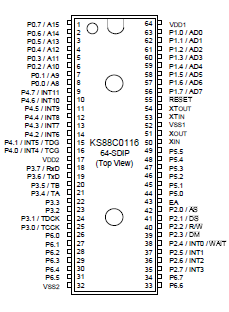

Connection Diagram



Connection Diagram




Description

The KS88C0116 single-chip 8-bit microcontroller is fabricated using a highly advanced CMOS process. Its fast and reliable CPU is based on Zilog's Super8Ò architecture. With two 8-bit and two 16-bit timer/counters, a large number of general I/O pins, full-duplex serial port, and 16-bit backup timer, the KS88C0116 is an excellent choice for a wide range of general-purpose electronics applications.
