Product Details

Description



Features:

• NTSC/PAL, Normal/Hiband, DVC compatible
• 10-bit A/D input
• Digital clamp
• WDR expansion using non-linear histogram modification
• Look up table (LUT) transform using line memory
• S1, S2 signals' HUE component correction by look-up-table transform
• Built-in memory for histogram storage
• Image analysis with histogram LOG function as reference
• Color sensitivity correction
• Serial micom interface
• Built-in operation for connection with AE
• 10-bit S1, S2 signal output for DCP I/F
• Spatial adaptive noise removal filter for low intensity images
• Interpretation of image characteristic through graphic OSD


Application

• Camcorder system
• Surveillance camera, PC camera


Pinout

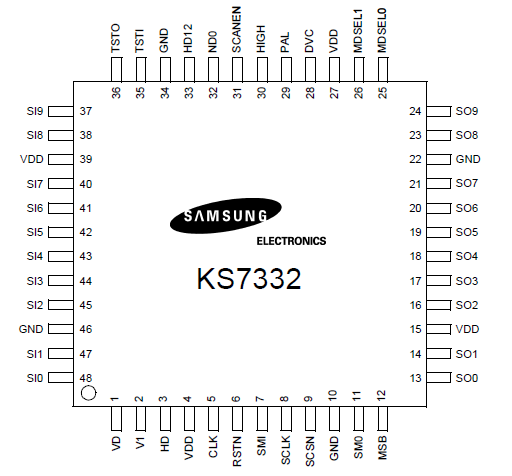

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Remark
DC supply voltage (digital)
VDD
-0.3 ~ 3.8
V
-
DC input voltage
VIN
-0.3 ~ VDD +0.3
V
-
Storage temperature
TSTG
-40 ~ 125
-
Latch-up current
ILU
±100
mA
-



Description

KS7332 is a digital image signal handling IC aimed at improving image contrast and counter light correction, applicable to CCD-using video camera systems such as camcorders and surveillance cameras. KS7332 receives the CCD output as digital data, analyzes the image's luminance distribution, then outputs a signal with improved dynamic range of luminance and color difference. It also uses a spatial adaptive filter to remove low intensity noise and output a stable image.
