Features:

- EIA / CCIR STANDARDS TIMING MODE
- HI-BAND / NORMAL TIMING MODE
- FRAME / FIELD ACCUMULATION MODE
- INTERLACE / NON - INTERLACE MODE
- EXTERNAL SYNCHRONIZATION MODE
- ELECTRONIC IRIS ( ELECTRONIC SHUTTER )
- SYNC SIGNAL GENERATION
- OSCILLATION FREQUENCY :
  EIA NORMAL MODE : 19.06992 MHz
  CCIR NORMAL MODE : 18.93750 MHz
  EIA HI-BAND MODE : 28.63636 MHz
  CCIR HI-BAND MODE : 28.37500 MHz


Pinout

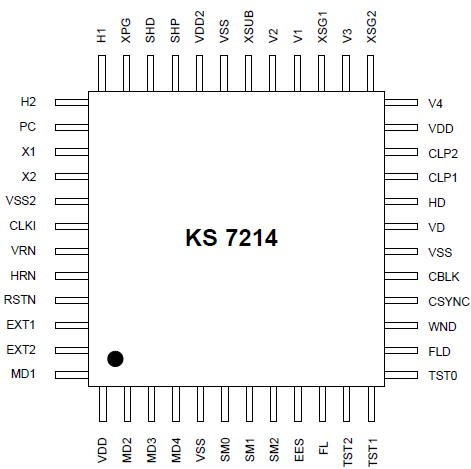

Connection Diagram


Specifications

PARAMETER
SYMBOL
CONDITION
UNIT
SUPPLY VOLTAGE
VDD
VSS - 0.3 ~ + 7.0
V
INPUT VOLTAGE
VI
VSS - 0.3 ~ VDD + 0.3
V
OUTPUT VOLTAGE
VO
VSS - 0.3 ~ VDD + 0.3
V
OPERATING TEMP.
Topr
0 ~ + 70
STORAGE TEMP.
Tstr
- 40 ~ + 125
LATCH-UP CURRENT
ILU
100
mA



Description

KS7214 is Timing control IC for generating timing signal & sync signal which required camera system using monochrome  CCD Image sensor.
