Product Details

Description



Pinout

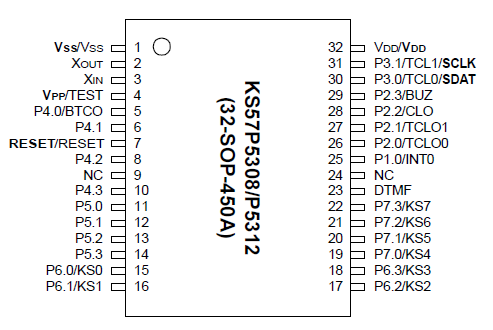

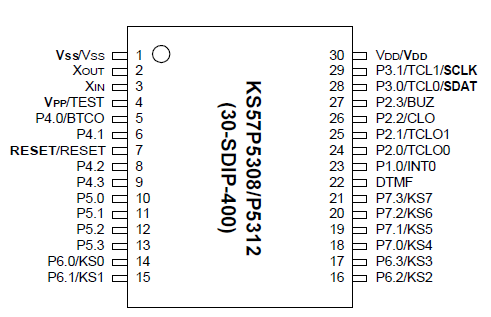

Connection Diagram Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply voltage
VDD
-
- 0.3 to + 6.5
V
Input voltage
VI
All I/O ports
- 0.3 to VDD + 0.3
V
Output voltage
VO
-
- 0.3 to VDD + 0.3
V
Output current high
IOH
One pin
- 15
mA
All output pins
- 35
Output current low
IOL
One pin
+ 30(Peak value)
mA
+ 15 (note)
All pins
+ 100 (Peak value)
+ 60 (note)
Operating temperatureC
TA
- 40 to + 85
Storage temperature
TSTG
- 65 to + 150

NOTE: The values for output current low ( IOL ) are calculated as peak value *Duty .


Description

The KS57P5308 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS57C5204/C5208/C5304/C5308/C5312 microcontroller. It has an on-chip EPROM instead of masked ROM. The EPROM is accessed by a serial data format.

The KS57P5308 is fully compatible with the KS57C5208/C5308/C5312, both in function and in pin configuration. Because of its simple programming requirements, the KS57P5308 is ideal for use as an evaluation chip for the KS57C5208/C5308/C5312.
