Product Details

Description



Features:

Memory
- 256 ´ 4-bit RAM
- 4096 ´ 8-bit ROM
I/O Pins
- Input only: 8 pins
- I/O: 16 pins
- Output only: 8 pins sharing with segment driver
outputs
LCD Controller/Driver
- Maximum 14-digit LCD direct drive capability
- 28 segment and 4 common pins
- Display modes: Static, 1/2 duty (1/2 bias) 1/3 duty (1/2 or 1/3 bias), 1/4 duty (1/3 bias)
- Internal resistor circuit for LCD bias
8-Bit Basic Timer
- Programmable interval timer
- Watchdog timer
8-Bit Timer
- Programmable 8-bit timer
Watch Timer
- Real-time and interval time measurement
- Four frequency outputs to BUZ pin
- Clock source generation for LCD
24-Bit Frequency Counter (FC)
- Level = 300mVpp (Min.)
- AMF input range = 0.5 MHz to 10 MHz
- FMF input range = 30 MHz to 150 MHz
A/D Converter
- 4-channels with 8-bit resolution
- 17 ms (Min.) conversion speed
Bit Sequential Carrier
- Support 16-bit serial data transfer in arbitrary format
Interrupts
- Two internal vectored interrupts
- Three external vectored interrupts
- Two quasi-interrupts
Memory-Mapped I/O Structure
- Data memory bank 15
Two Power-Down Modes
- Idle mode (only CPU clock stops)
- Stop mode (main system clock stops)
- Subsystem clock stops
Oscillation Sources
- Crystal, ceramic, or RC for main system clock
- Crystal or external oscillator for subsystem clock
- Main system clock frequency: 4.19 MHz (typical)
- Subsystem clock frequency: 32.768 kHz
- CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
- 0.95, 1.91, 15.3 s at 4.19 MHz (main)
- 122 s at 32.768 kHz (subsystem)
Operating Temperature
- 40 °C to 85 °C
Operating Voltage Range
- 1.8 V to 5.5 V at 3 MHz
- 3.0 V to 5.5 V at FC mode
Package Type
- 64-pin QFP

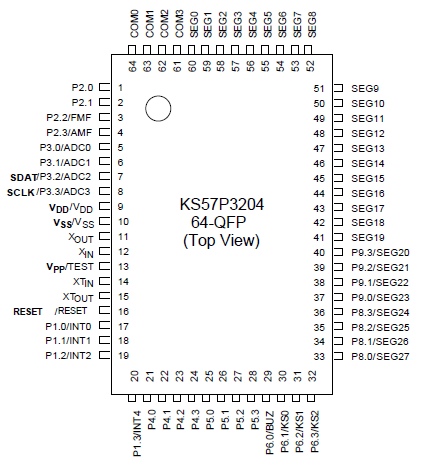

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply Voltage
VDD
-
0.3 to + 6.5
V
Input Voltage
VI
All I/O ports
0.3 to VDD + 0.3
V
Output Voltage
VO
-
0.3 to VDD + 0.3
V
Output Current High
IOH
One I/O port active
-15
mA
All I/O ports active
-30
Output Current Low
IOL
One I/O pin active
+ 30 (Peak value)
mA
+ 15(note)
Total value for ports 1, 4, 5 and 6
+ 100 (Peak value)
+ 60(note)
Operating Temperature
TA
-
40 to + 85
Storage Temperature
Tstg
-
65 to + 150

NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value* Duty .


Description

The KS57P3204 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the S57C3204microcontroller. It has an on-chip EPROM instead of masked ROM. The EPROM is accessed by a serial data format.

The KS57P3204 is fully compatible with the KS57C3204, both in function and in pin configuration.

Because of its simple programming requirements, the KS57P3204 is ideal for use as an evaluation chip for the KS57C3204.
