KS57C5532

Features: Memory` 1 K * 4-bit RAM` 32 K * 8-bit ROM55 I/O Pins` Input only: 4 pins` I/O: 43 pins` N-channel open-drain I/O (S/W): 8 pinsMemory-Mapped I/O Structure` Data memory bank 15DTMF Generator` 16 dual-tone frequencies for tone dialing8-bit Basic Timer` Programmable internal timer` Watchdog ...

product image

KS57C5532 Picture
See larger image
SeekIC No. : 004387520 Detail

KS57C5532: Features: Memory` 1 K * 4-bit RAM` 32 K * 8-bit ROM55 I/O Pins` Input only: 4 pins` I/O: 43 pins` N-channel open-drain I/O (S/W): 8 pinsMemory-Mapped I/O Structure` Data memory bank 15DTMF Generator...

KS57C5532 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS57C5532
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
` 1 K * 4-bit RAM
` 32 K * 8-bit ROM
55 I/O Pins
` Input only: 4 pins
` I/O: 43 pins
` N-channel open-drain I/O (S/W): 8 pins
Memory-Mapped I/O Structure
` Data memory bank 15
DTMF Generator
` 16 dual-tone frequencies for tone dialing
8-bit Basic Timer
` Programmable internal timer
` Watchdog timer
Two 8-bit Timer/Counters
` Programmable interval timer
` External event counter function
` Timer/counters clock outputs to TCLO0 and
TCLO1 pins
` External clock signal divider
` Serial I/O interface clock generator
Watch Timer
` Time interval generation: 0.5 s, 3.9 ms at 32.768 kHz
` 4 frequency outputs to the BUZ pin
8-bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive mode
` LSB-first or MSB-first transmission selectable
Bit Sequential Carrier
` Supports 8-bit serial data transfer in arbitrary format
Interrupts
` 3 external interrupt vectors
` 4 internal interrupt vectors
` 2 quasi-interrupts
Power-Down Modes
` Idle: Only CPU clock stops
` Stop: Main system clock stops
` Subsystem clock stop mode
Oscillation Sources
` Crystal, ceramic for main system clock
` Crystal oscillator for subsystem clock
` Main system clock frequency: 3.579545 MHz (typical)
` Subsystem clock frequency: 32.768 kHz (typical)
` CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
` 0.67, 1.33, 10.7 s at 6.0 MHz
` 1.12, 2.23, 17.88 s at 3.579545 MHz
` 122 s at 32.768 kHz
Operating Temperature
` 40 to 85
Operating Voltage Range
` 1.8 V to 5.5 V (at 3 MHz)
` 2.7 V to 5.5 V (at 6 MHz)
Package Types
` 64 SDIP, 64 QFP


Pinout

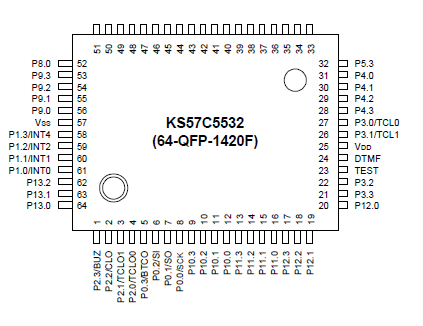

Connection Diagram

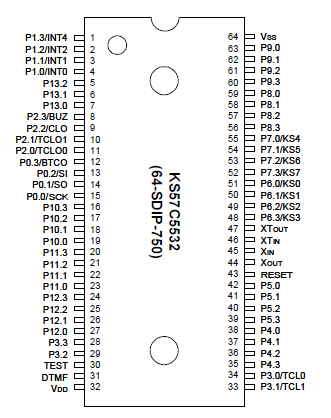

Connection Diagram



Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply Voltage
VDD
-
0.3 to + 6.5
V
Input Voltage
VI

All I/O ports
0.3 to VDD + 0.3
V
Output Voltage
VO
-
0.3 to VDD + 0.3
V
Output Current High
IOH
One I/O port active
-15
mA
All I/O ports active
-30
Output Current Low
IOL
One I/O pin active
 + 30 (Peak value)
mA
+ 15 (note)
All I/O ports active
+100 (Peak value)
+60(note)
Operating Temperature
TA
-
40 to + 85
Storage Temperature
Tstg
-
65 to + 150

NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value*Duty .


Description

The KS57C5532/P5532 single-chip CMOS microcontroller has been designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers). The KS57P5532 is a microcontroller which has 32-kbyte one-time-programmable EPROM but its functions are same to KS57C5532.

With its DTMF generator, 8-bit serial I/O interface, and versatile 8-bit timer/counters, the KS57C5532/P5532 offers an excellent design solution for a wide variety of telecommunication applications.

Up to 55 pins of the 64-pin SDIP or QFP package can be dedicated to I/O. Seven vectored interrupts provide fast esponse to internal and external events. In addition, the KS57C5532/P5532's advanced CMOS technology provides for low power consumption and a wide operating voltage range.
