Features:

Memory
` 768 ´ 4-bit RAM
4,096 ´ 8-bit ROM (KS57C5204/C5304)
8,192 ´ 8-bit ROM (KS57C5208/C5308)
12,288 ´ 8-bit ROM (KS57C5312)
I/O Pins
` Input only: 4 pins (KS57C5204/C5208)
1 pins (KS57C5304/C5308/C5312)
` I/O: 35 pins (KS57C5204/C5208)
23 pins (KS57C5304/C5308/C5312)
` N-channel open-drain I/O: 8 pins
Memory-Mapped I/O Structure
` Data memory bank 15
DTMF Generator
` 16 dual-tone frequencies for tone dialing
8-Bit Basic Timer
` Programmable interval timer
` Watchdog timer
Two 8-Bit Timer/Counters
` Programmable 8-bit timer
` External event counter function
` Arbitrary clock frequency output
Watch Timer
` Real-time and time interval generation
` Four frequency outputs to the BUZ pin
Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format
Interrupts
` 3 external interrupt vectors (KS57C5204/C5208)
1 external interrupt vectors
(KS57C5304/C5308/C5312)
` 3 internal interrupt vectors
` 2 quasi-interrupts
Power-Down Modes
` Idle: Only CPU clock stops
` Stop: System clock stops
Oscillation Sources
` Crystal, or ceramic for main system clock
` Main system clock frequency: 0.46.0 MHz
(typical)
` CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
` 0.95, 1.91, and 15.3 ms at 4.19 MHz
` 1.12, 2.23, 17.88 ms at 3.58 MHz
` 0.67, 1.33, 10.7 ms at 6.0 MHz
Operating Temperature
` 40 °C to 85 °C
Operating Voltage Range
` 1.8 V to 5.5 V
Package Types
` 42 SDIP, 44 QFP (KS57C5204/C5208)
` 30 SDIP, 32 SOP (KS57C5304/C5308/C5312)


Pinout

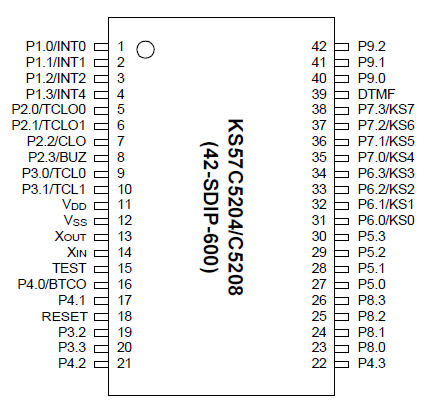

Connection Diagram

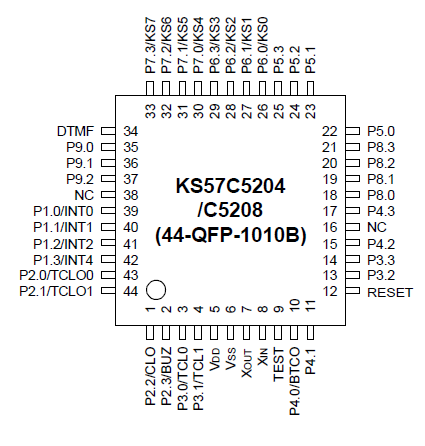

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply voltage
VDD
-
- 0.3 to + 6.5
V
Input voltage
VI
All I/O ports
- 0.3 to VDD + 0.3
V
Output voltage
VO
-
- 0.3 to VDD + 0.3
V
Output current high
IOH
One pin
- 15
mA
All output pins
- 35
Output current low
IOL
One pin
+ 30(Peak value)
mA
+ 15 (note)
All pins
+ 100 (Peak value)
+ 60 (note)
Operating temperatureC
TA
- 40 to + 85
Storage temperature
TSTG
- 65 to + 150

NOTE: The values for output current low ( IOL ) are calculated as peak value *Duty .


Description

The KS57C5204single-chip CMOS microcontroller has been designed for highperformance using SAM 47 (Samsung Arrangeable Microcontrollers). SAM 47, Samsung's newest 4-bit CPU core is notable for its low energy consumption and low operating voltage.

You can select from three ROM sizes: 4K, 8K, or 12K bytes.

Except for the difference in ROM size, the features and functions of the KS57C5204 and the KS57C5208 are identical and the KS57C5304, KS57C5308, and the KS57C5312 are identical.

With it's DTMF generator, watchdog timer function, and versatile 8-bit timer/counters, the  S57C5204 offers an excellent design solution for a wide variety of telecommunication applications.

Up to 35 pins of the available 42-pin SDIP or 44-pin QFP package for the KS57C5204/C5208, and up to 23 pins of the available 30-pin SDIP or 32-pin SOP package for the KS57C5304/C5308/C5312 can be assign to I/O. Six ectored interrupts for KS57C5204/C5208 and four vectored interrupts for KS57C5304/C5308/C5312 provide fast esponse to internal and external events. In addition, the KS57C5204advanced CMOS technology provides for low power consumption and a wide operating voltage range.
