KS57C3316

Features: Memory` 512-nibble RAM` 16K-byte ROMI/O Pins` Input only: 4 pins` Output only: 28 pins` I/O: 24 pinsLCD Controller/Driver` Maximum 14-digit LCD direct drive capability` 28 segment x 4 common signals` Display modes: Static, 1/2 duty (1/2 bias)1/3 duty (1/2 or 1/3 bias), 1/4 duty (1/3 bias...

product image

KS57C3316 Picture
See larger image
SeekIC No. : 004387510 Detail

KS57C3316: Features: Memory` 512-nibble RAM` 16K-byte ROMI/O Pins` Input only: 4 pins` Output only: 28 pins` I/O: 24 pinsLCD Controller/Driver` Maximum 14-digit LCD direct drive capability` 28 segment x 4 comm...

KS57C3316 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS57C3316
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
` 512-nibble RAM
` 16K-byte ROM
I/O Pins
` Input only: 4 pins
` Output only: 28 pins
` I/O: 24 pins
LCD Controller/Driver
` Maximum 14-digit LCD direct drive capability
` 28 segment x 4 common signals
` Display modes: Static, 1/2 duty (1/2 bias)
1/3 duty (1/2 or 1/3 bias), 1/4 duty (1/3 bias)
8-Bit Basic Timer
` Programmable interval timer functions
` Watch-dog timer function
8-Bit Timer/Counter
` Programmable 8-bit timer
` External event counter
` Arbitrary clock frequency output
` External clock signal divider
` Serial I/O interface clock generator
Watch Timer
` Time interval generation
: 0.5 s, 3.9 ms at 32.768 kHz
` Frequency outputs to BUZ pin
` Clock source generation for LCD
8-Bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive mode
` Data direction selectable (LSB-first or MSB-first)
` Internal or external clock source
A/D Converter
` 4-channels with 8-bit resolution
Bit Sequential Carrier Buffer
` Support 16-bit serial data transfer in arbitrary
format
PLL Frequency Synthesizer
` Level = 300 mVp-p (min)
` AMVCO range = 0.5 MHz to 30 MHz
` FMVCO range = 30 MHz to 150 MHz
16-Bit Intermediate Frequency (IF) Counter
` Level = 300 mVp-p (min)
` AMIF range = 100 kHz to 1 MHz
` FMIF range = 5 MHz to 15 MHz
Interrupts
` Four internal vectored interrupts
` Four external vectored interrupts
` Two quasi-interrupts
Memory-Mapped I/O Structure
` Data memory bank 15
Three Power-Down Modes
` Idle: Only CPU clock stops
` Stop1: Main system or subsystem clock stops
` Stop2: Main system and subsystem clock stop
` CE low: PLL and IFC stop
Oscillation Sources
` Crystal or ceramic oscillator for main system
clock
` Crystal for subsystem clock
` Main system clock frequency: 4.5 MHz (Typ)
` Subsystem clock frequency: 32.768 kHz (Typ)
` CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
` 0.9, 1.8, 14.2 ms at 4.5 MHz
` 122 ms at 32.768 kHz (subsystem)
Operating Temperature
` 40 to 85
Operating Voltage Range
` 1.8 V to 5.5 V at 3MHz
` PLL/IFC operation: 2.5V to 3.5V or 4.0V to 5.5V
Package Type
` 80-pin QFP


Pinout

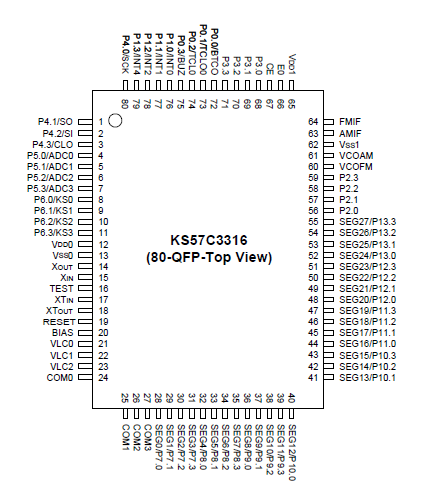

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply voltage
VDD
-
- 0.3 to + 6.5
V
Input voltage
VIN
Applies to all I/O ports
- 0.3 to VDD + 0.3
Output voltage
VO
-
- 0.3 to VDD + 0.3
Output current high
IOH
One I/O port active
- 15
mA
All I/O ports active
- 30
Output current low
IOL
One I/O port active
+ 30 (peak value)
+ 15 (note)
Total value for output ports
+ 100 (peak value)
+ 60 *
Operating temperatureC
TA
- 40 to + 85
Storage temperature
TSTG
- 65 to + 150


NOTE: The values for output current low ( IOL ) are calculated as Peak Value* Duty .


Description

The KS57C3316 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

With features such as LCD direct drive capability, 4-channel A/D converter, 8-bit timer/counter, watch timer and PLL frequency synthesizer, it offers you an excellent design solution for a wide variety of applications that require LCD functions and audio applications.

Up to 56 pins of the 80-pin QFP package, KS57C3316 can be dedicated to I/O. Eight vectored interrupts provide fast response to internal and external events. In addition, the KS57C3316's advanced CMOS technology provides for low power consumption and a wide operating voltage range.
