KS57C21632

Features: Memory• 768 ´ 4-bit RAM (excluding LCD display RAM)• 32,768 ´ 8-bit ROM12 I/O Pins• I/O: 12 pinsLCD Controller/Driver• 56 segments and 16 common terminals (8, 12 and 16 common selectable)• Capacitor bias for LCD output.• Voltage booster and...

product image

KS57C21632 Picture
See larger image
SeekIC No. : 004387504 Detail

KS57C21632: Features: Memory• 768 ´ 4-bit RAM (excluding LCD display RAM)• 32,768 ´ 8-bit ROM12 I/O Pins• I/O: 12 pinsLCD Controller/Driver• 56 segments and 16 common termina...

KS57C21632 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS57C21632
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
• 768 ´ 4-bit RAM (excluding LCD display RAM)
• 32,768 ´ 8-bit ROM
12 I/O Pins
• I/O: 12 pins
LCD Controller/Driver
• 56 segments and 16 common terminals (8, 12 and 16 common selectable)
• Capacitor bias for LCD output.
• Voltage booster and regulator
• All dots can be switched on/off
8-bit Basic Timer
• 4 interval timer functions
• Watch-dog timer
One 16-bit Timer/Counter 1
• Programmable 16-bit timer
• Arbitrary clock output (TCLO1)
• Inverted clock output (TCLO1)
• Configurable two 8-bit timer/counters
Watch Timer
• Time interval generation: 0.5 s, 3.9 ms at 32768 Hz
• Four frequency outputs to BUZ pin and BUZ pin
• Clock source generation for LCD
Battery Level Detector
• Programmable low voltage detector
• One criteria voltage (2.4 V)
Interrupts
• Three Internal vectored interrupt
• Four external vectored interrupts
• Two quasi-interrupts
Memory-Mapped I/O Structure
• Data memory bank 15
Power-Down Modes
• Idle mode (only CPU clock stops)
• Stop mode (main system oscillation stops)
• Subsystem clock stop mode
Oscillation Sources
• Crystal, ceramic, or RC for main system clock
• Crystal oscillator for subsystem clock
• Main system clock frequency: 0.4-4.19 MHz
• Subsystem clock frequency: 32.768 kHz
• CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
• 0.95, 1.91, 15.3 s at 4.19 MHz (main)
• 122 s at 32.768 kHz (subsystem)
Operating Temperature
• 40 °C to 85 °C
Operating Voltage Range
• 2.2 V to 3.4 V (0.4 MHz to 4.19 MHz)
Package Type
• 100-pin QFP or pellet


Pinout

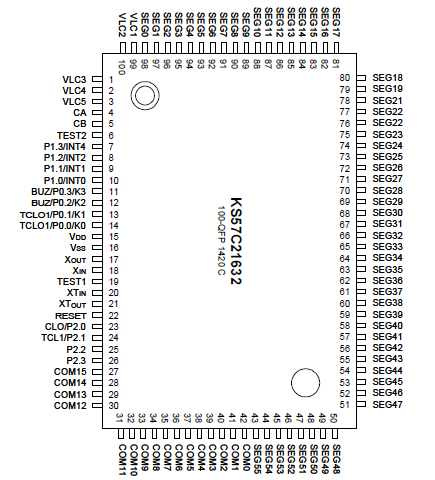

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply Voltage
VDD
-
0.3 to + 4.5
V
Input Voltage
VI
Ports 02
0.3 to VDD + 0.3
V
Output Voltage
VO
-
0.3 to VDD + 0.3
V
Output Current High
IOH
One I/O port active
-15
mA
All I/O ports active
-30
Output Current Low
IOL
 One I/O pin active
+ 30 (Peak value)
mA

+ 15 (note)

Total for pins 0, 1
+ 100 (Peak value)
+ 60 (note)
Operating Temperature
TA
-
40 to + 85
Storage Temperature
Tstg
-
65 to + 150

NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value * Duty .


Description

The KS57C21632 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

With an up-to-896-dot LCD direct drive capability, and flexible 8-bit timer/counters, the KS57C21632 offers an excellent design solution for a high-end LCD game.

Up to 12 pins of the 100-pin QFP package can be dedicated to I/O. Seven vectored interrupts provide fast response to internal and external events. In addition, the KS57C21632's advanced CMOS technology provides for low power consumption.
