KS5520

Features: • Screen structure : 360 ( 30 columns ×12 rows)• Character structure : 12 ×18 dots• Character types : 256 kinds of color characters• Display position : 62 horizontal position64 vertical position• Character size : 4 ×4 times of normal in both vertical and hor...

product image

KS5520 Picture
See larger image
SeekIC No. : 004387490 Detail

KS5520: Features: • Screen structure : 360 ( 30 columns ×12 rows)• Character structure : 12 ×18 dots• Character types : 256 kinds of color characters• Display position : 62 horizonta...

KS5520 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS5520
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Screen structure : 360 ( 30 columns ×12 rows)
• Character structure : 12 ×18 dots
• Character types : 256 kinds of color characters
• Display position : 62 horizontal position
64 vertical position
• Character size : 4 ×4 times of normal in both vertical and horizontal directions
• Blinking : controllable in character unit, blinking time also controllable
• Blanking : controllable in line units, blanking mode change possible
Blank color fill possible in character units (8 colors)
• Background coloring : 8 colors
• Character coloring : coloring of characters possible in blank mode
• Inverse character display : controllable in character units
• Synchronous ways : automatic selection of internal or external synchronization via MICOM control
• Built-in clamp, horizontal/vertical sync separator & sync detector circuit
• Sync detection sensitivity can be adjusted via MICOM control.
• Built-in analog horizontal/vertical sync PLL circuit
• Scroll & Box Drawing ability
• Half-Tone function ability
• NTSC / PAL / SECAM mode via MICOM control


Pinout

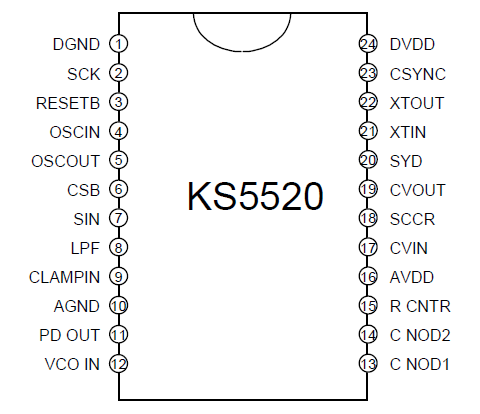

Connection Diagram


Specifications

Characteristics
Symbol
Value
Unit
Supply Voltage
VDD
- 0.3 ~ 7.0
V
Input Voltage
VIN
VSS - 0.3 VIN VDD + 0.3
V
Power Dissipation
Pd
200
mW
Operating Temperature
Topr
- 20 ~ + 70
Storage Temperature
Tstg
- 40 ~ + 125



Description

The KS5520 is a single chip VLSI device which performs the on screen display function with sync seperation of video composite signal and AFC is proposed.

KS5520 can choose total 256 characters and display up to 360 characters in a screen.

KS5520 can also select various built-in functions such as character color select, inverse, etc. These functions are compatible with all video systems including NTSC, PAL, SECAM.
