Product Details

Description



Features:

· Internal Memory
- Character Generator ROM: 8320bits
- Character Generator RAM: 512 bits
- Display Data RAM: 80×8bits for 80 digits.
· Power Supply Voltage; +5V+10%, +3V+10%
· Supply voltage for display: 0~-5V(VS)
· CMOS process
· 1/8 duty, 1/11 duty or 1/16 duty: selectable
(1/8 duty; 5×7 dots format 1 line, 1/11 duly; 5 x 10 dots format I line, 1/16 duty: 5×7 dots format 2 line)
· 100 QFP or bare chip available.


Pinout

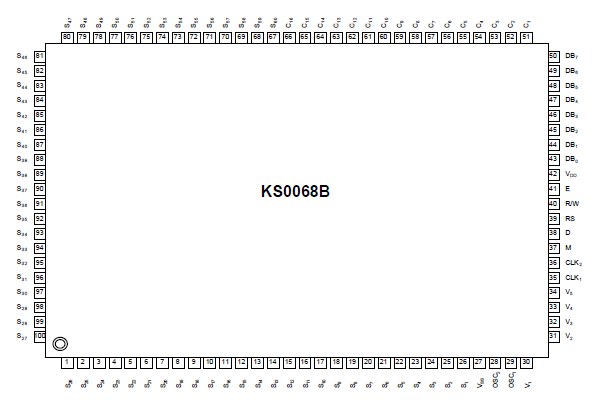

Connection Diagram


Description

The KS0068B is a dot matrix LCD driver & controller LSl which is fabricated by low power CMOS technology.
