Product Details

Description

Features:

• Digital output
• Serial Peripheral Interface (SPI)
• Offset calibrated
• CMOS compatible surface micromachining
• Diagnostic modes
• SMD housing

Pinout

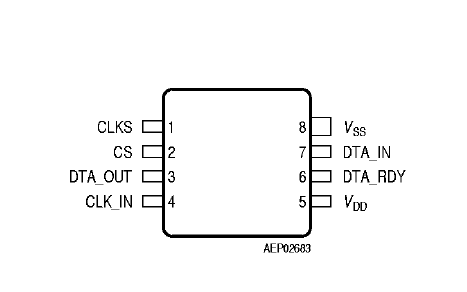

Connection Diagram

Specifications

Parameter	Symbol	Limit Values			Unit
Parameter	Symbol	min.	typ.	max.
Clock Oscillator
Voltage on pin CLK_IN	V_{CLK_IN}	0.3	-	V_DD+0.3	V
Current on pin CLK_IN	I_{CKL_IN}	100	-	100	A
Serial Peripheral Interface (SPI)
Input voltage on pins CLKS, CS and DTA_IN	V_CLKS V_CS V_{DTA_IN}	0.3	-	V_DD+0.3	V
Current on pins CLKS, CS, DTA_IN	I_CLKS I_CS I_{DTA_IN}	1.0	-	1.0	mA
Temperature
Storage temperature	T_S	40	-	90
Junction temperature	T_j	40	-	100
Pressure
Pressure overload	p_OL	-	-	200	kPa

Note: Stresses above those listed here may cause permanent damage to the device. xposure to absolute maximum rating conditions for extended periods may affect evice reliability.

Description

The KP100 is an absolute pressure sensor with SPI interface for side airbag pplications. The basic accuracy including temperature drift is ±5%. The KP100 offers ome diagnosis features in order to allow a sensor status analysis.
