KM62V256C

Features: `Process Technology : 0.7m `CMO Organization : 32K x 8`Power Supply Voltage KM62V256C family : 3.3V ±0.3V KM62U256C family : 3.0V± 0.3V`Low Data Retention Voltage : 2V(Min) `Three state output and TTL Compatible `Package Type : JEDEC Standard 28-SOP, 28-TSOP(I)-Forward/ReversePinoutSpec...

product image

KM62V256C Picture
See larger image
SeekIC No. : 004386142 Detail

KM62V256C: Features: `Process Technology : 0.7m `CMO Organization : 32K x 8`Power Supply Voltage KM62V256C family : 3.3V ±0.3V KM62U256C family : 3.0V± 0.3V`Low Data Retention Voltage : 2V(Min) `Three state o...

KM62V256C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KM62V256C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Process Technology : 0.7m
`CMO Organization : 32K x 8
 `Power Supply Voltage
      KM62V256C family : 3.3V ±0.3V
      KM62U256C family : 3.0V± 0.3V
 `Low Data Retention Voltage : 2V(Min)
`Three state output and TTL Compatible
`Package Type : JEDEC Standard
      28-SOP, 28-TSOP(I)-Forward/Reverse

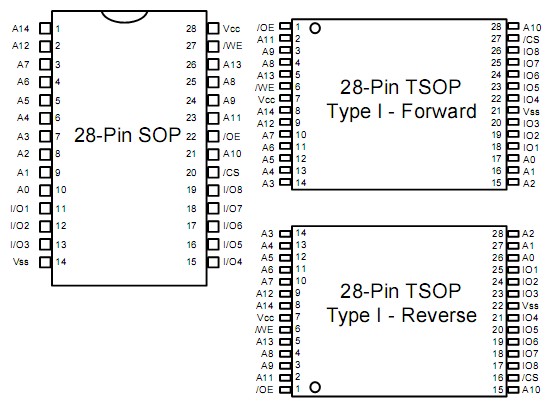

Pinout

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit

Remark
Voltage on any pin relative to Vss
Vin, Vout
-0.5 to Vcc+0.5
V
-
Voltage on Vcc supply relative to Vss
Vcc
-0.3 to 4.6
V
-
Power Dissipation
Pd
0.7
W
-
Storage temperature
Tstg
-65 to 150
-
Operating Temperature
Ta
0 to 70
KM62V256CL-L, KM62U256CL-L

-25 to 85
KM62V256CLE-L, KM62U256CLE-L
-40 to 85
KM62V256CLI-L, KM62U256CLI-L
Soldering temperature and time
Tsolder
260 , 10se (Lead only)
-
* Stresses greater than those listed under 'Absolute Maximum Ratings' may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operating section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The KM62V256C and KM62U256C family are fabricated by SAMSUNG's advanced CMOS process technology. The KM62V256C family can support various operating temperature ranges and has various package types for user flexibility of system design. The KM62V256C family also support low data retention voltage for battery back-up operation with low data retention current.
