Features:

· Voltage supply : 2.7V~3.6V
· Organization
- Memory Cell Array : (16M + 512K)bit x 8bit
- Data Register : (512 + 16)bit x8bit
· Automatic Program and Erase
- Page Program : (512 + 16)Byte
- Block Erase : (16K + 512)Byte
· 528-Byte Page Read Operation
- Random Access : 10ms(Max.)
- Serial Page Access : 50ns(Min.)
· Fast Write Cycle Time
- Program time : 200ms(typ.)
- Block Erase time : 2ms(typ.)
· Command/Address/Data Multiplexed I/O port
· Hardware Data Protection
- Program/Erase Lockout During Power Transitions
· Reliable CMOS Floating-Gate Technology
- Endurance : 1M Program/Erase Cycles
- Data Retention : 10 years
· Command Register Operation
· Package : 48 - pin TSOP Type1 - 12 x 20 / 0.5 mm pitch



Pinout

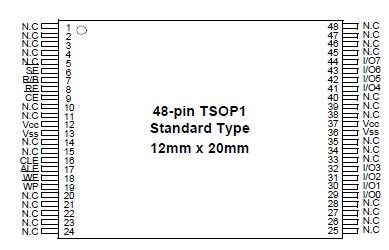

  Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VIN
VCC
-0.6 to + 4.6
V
Temperature Under Bias KM29U128T
KM29U128IT
TBIAS -10 to +125
-40 to +125
°C
Storage temperature TSTG -65 to +150 °C
Short circuit current IOS 5 mA
NOTE :
1. Minimum DC voltage is -0.3V on input/output pins. During transitions, this level may undershoot to -2.0V for periods <30ns. Maximum DC voltage on input/output pins is VCC+0.3V which, during transitions, may overshoot to VCC+2.0V for periods <20ns.
2. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to the conditions as detailed in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect reliability.



Description

The KM29U128 is a 16M(16,777,216)x8bit NAND Flash Memory with a spare 512K(524,288)x8bit. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. A program operation programs the 528-byte page in typically 200ms and an erase operation can be performed in typically 2ms on a 16K-byte block. Data in the page can be read out at 50ns cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command inputs.

The on-chip write controller automates all program and erase functions including pulse repetition, where required, and internal verify and margining of data. Even the write-intensive systems can take advantage of the KM29U128¢s extended reliability of 1,000,000 program/erase cycles by providing either ECC(Error Correcting Code) or real time mapping-out algorithm.

These algorithms have been implemented in many mass storage applications and also the spare 16 bytes of a page
combined with the other 512 bytes can be utilized by systemlevel ECC.

The KM29U128 is an optimum solution for large nonvolatile storage applications such as solid state file storage, digital
voice recorder, digital still camera and other portable applications requiring non-volatility.
