KL5KUSB111

Features: · Advanced 16 Bit processor for USB transaction processing and control data processing· USB interface ver. 1.0/1.1 compliant· Integrated Transceivers and SIE (Serial Interface Engine)· Internal Clock Generation· Utilizes low cost external crystal circuitry· 1.5K x 16 Internal RAM buffer·...

product image

KL5KUSB111 Picture
See larger image
SeekIC No. : 004385890 Detail

KL5KUSB111: Features: · Advanced 16 Bit processor for USB transaction processing and control data processing· USB interface ver. 1.0/1.1 compliant· Integrated Transceivers and SIE (Serial Interface Engine)· Int...

KL5KUSB111 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KL5KUSB111
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Advanced 16 Bit processor for USB transaction processing and control data processing
· USB interface ver. 1.0/1.1 compliant
· Integrated Transceivers and SIE (Serial Interface Engine)
· Internal Clock Generation
· Utilizes low cost external crystal circuitry
· 1.5K x 16 Internal RAM buffer
· Serial Interface for external EEPROM
· HomePNA compliant for 1Mb/sec.
· Fully IEEE 802.3 compliant 10 Mbit/sec Ethernet MAC Layer. Interfaces serially of an external ENDEC PHY.
· Debug UART
· External memory interface
· Compatible with most HomePNA PHY's
· Watchdog timer
· 100 pin LQFP package


Pinout

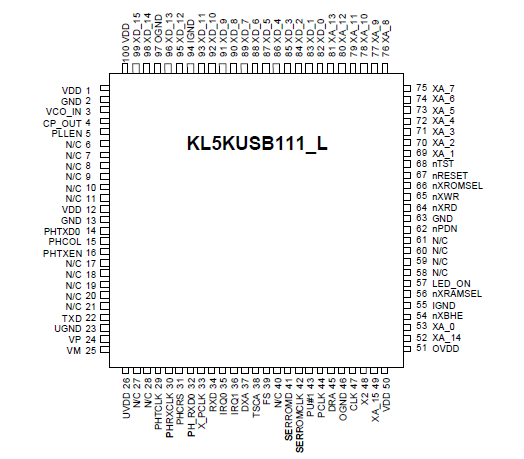

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Supply Voltage
Vdd
0.3 ~ 4.0
V
Input Voltage
Vin
0.3 ~ 7.3
V
DC Output Current
Iout
±15
mA
Storage Temperature
Tstg
55 ~ 125



Description

The Kawasaki KL5KUSB111 Controller is a unique single chip solution developed to interface the Universal Serial  Bus (USB) to HomePNA-Networks and standard 10base-T Networks. The KL5KUSB111 has been specifically designed to provide a simple solution to communicate with Home Networking Applications at 1 Mb/s and/or 10 Mb/s Ethernet. By utilizing the Kawasaki's USB to Ethernet technology that has been used throughout the industry. The USB controller consists of a central 16-bit processor, mask ROM, RAM buffer, clock generator, HomePNA / Ethernet interface, UART, IRQ, Watchdog Timer, Serial interface, External Memory Interface and Debug UART. The SIE (Serial Interface Engine) is fully compatible with the USB specification. The Kawasaki USB to HomePNA  ontroller enables the advantages of Home Networking such as Shared Internet access, Printer/peripheral sharing, File and application sharing and Networked gaming.
