KDE1209PTV1.13.MS.A.GN

FAN 12VDC 92X25MM 1.9W 49CFM

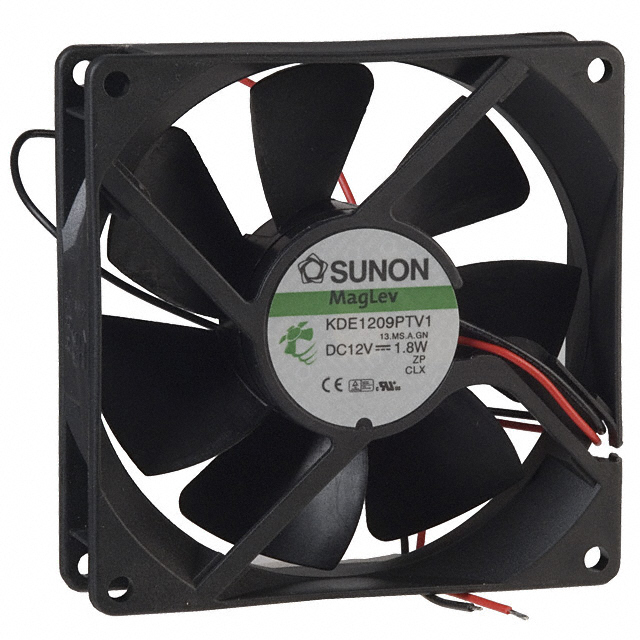

product image

KDE1209PTV1.13.MS.A.GN Picture
See larger image
SeekIC No. : 003439539 Detail

KDE1209PTV1.13.MS.A.GN: FAN 12VDC 92X25MM 1.9W 49CFM

KDE1209PTV1.13.MS.A.GN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KDE1209PTV1.13.MS.A.GN
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: KDE Manufacturer: Sunon Fans
Fan Type: Tubeaxial Size / Dimension: Square - 92mm L x 92mm H x 25mm W
Voltage - Rated: 12VDC Power (Watts): 1.90W
Features: - RPM: 2800 RPM
Noise: 34 dB(A) Static Pressure: 0.160 in H2O (39.8 Pa)
Package / Case : SOP-20 Air Flow: 49.0 CFM (1.39m³/min)
Termination: 2 Wire Leads Bearing Type: Vapo-Bearing?

Description

Manufacturer: Sunon Fans
Fan Type: Tubeaxial
Voltage - Rated: 12VDC
Features: -
Termination: 2 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Size / Dimension: Square - 92mm L x 92mm H x 25mm W
Noise: 34 dB(A)
Bearing Type: Vapo-Bearing?
Series: KDE
Static Pressure: 0.160 in H2O (39.8 Pa)
Power (Watts): 1.90W
Air Flow: 49.0 CFM (1.39m³/min)
RPM: 2800 RPM


Parameters:

Technical/Catalog InformationKDE1209PTV1.13.MS.A.GN
VendorSunon Fans
CategoryFans, Thermal Management
Voltage - Rated 12VDC
Power (Watts)1.9W
Bearing TypeVapo-Bearing?
Size / DimensionSquare - 92mm L x 92mm H x 25mm W
Air Flow49 CFM
Features-
Termination2 Wire Leads
Fan TypeTubeaxial
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names KDE1209PTV1 13 MS A GN
KDE1209PTV113MSAGN
259 1359 ND
2591359ND
259-1359
