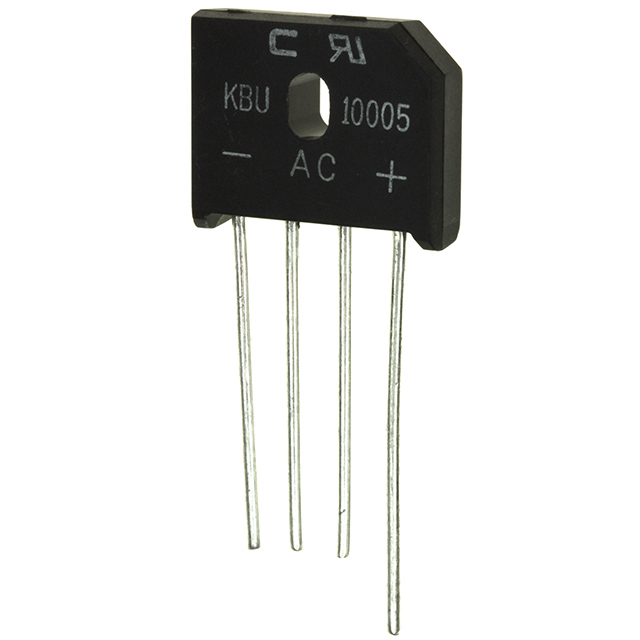

KBU1001

Product :
Power Dissipation :
Length :
Width :
Height :
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Maximum Reverse Leakage Current : 10 uA
Peak Reverse Voltage : 100 V
Maximum RMS Reverse Voltage : 70 V
Max Surge Current : 300 A
Packaging : Bulk
Forward Voltage Drop : 1.05 V
Package / Case : KBU
Forward Continuous Current : 10 A


Features:

` UL Recognized File # E-96005
` High surge current capability
` Ideal for printed circuit board
` Reliable low cost construction technique results in inexpensive product
` High temperature soldering guaranteed: 260 / 10 seconds / 0.375" ( 9.5mm ) lead length at 5 lbs.,
    ( 2.3 kg ) tension
` Weight: 8 grams


Specifications

Type Number	Symbol	KBU1001	KBU1002	KBU1003	KBU1004	KBU1005	KBU1006	KBU1007	Unit
Maximum Recurrent Peak Reverse Voltage	VRRM	50	100	200	400	600	800	1000	V
Maximum RMS Voltage	VRMS	35	70	140	280	420	560	700	V
Maximum DC Blocking Voltage	VDC	50	100	200	400	600	800	1000	V
Maximum Average Forward Rectified Current @TA = 55	I(AV)	10.0							A
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method )	IFSM	300							A
Maximum Instantaneous Forward Voltage @ 10A	VF	1.1							V
Maximum DC Reverse Current @ TA=25 at Rated DC Blocking Voltage @ TA=100	IR	10 500							uA uA
Typical Thermal Resistance (Note)	R JC	2.2							/W
Operating Temperature Range	TJ	-55 to +125
Storage Temperature Range	TSTG	-55 to +150

Note: Thermal Resistance from Junction to Case with Device Mounted on 2" x 3" x 0.25" Al-Plate.
