KBD42W11

Features: ` Supports IBM PC and Compatible System Designs` Runs Much Faster Than Traditional Keyboard Controllers` Host interface Compatible with Traditional Keyboard Controller` 6 MHz 12 MHz Operating Frequency` Communicates with Keyboard Directly` High-reliability CMOS Technology` 40 Pin DIP an...

product image

KBD42W11 Picture
SeekIC No. : 004384184 Detail

KBD42W11: Features: ` Supports IBM PC and Compatible System Designs` Runs Much Faster Than Traditional Keyboard Controllers` Host interface Compatible with Traditional Keyboard Controller` 6 MHz 12 MHz Opera...

floor Price/Ceiling Price

Part Number:
KBD42W11
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Supports IBM PC and Compatible System Designs
` Runs Much Faster Than Traditional Keyboard Controllers
` Host interface Compatible with Traditional Keyboard Controller
` 6 MHz 12 MHz Operating Frequency
` Communicates with Keyboard Directly
` High-reliability CMOS Technology
` 40 Pin DIP and 44 Pin PLCC Package



Pinout

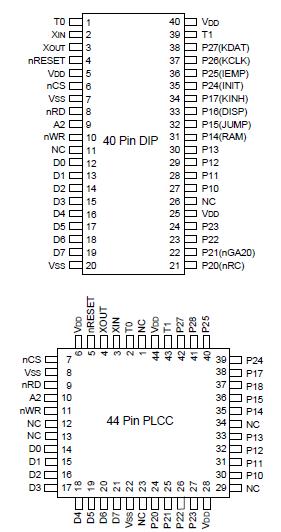

  Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Ambient Operating Temperature
-0 to +85
°C
Storage Temperature
-65 to +150
°C
Supply Voltage to Ground Potential
-0.3 to +7.0
V
Applied Input/Output Voltage
-0.3 to +7.0
V
Power Dissipation
50
mW


Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.




Description

The KBD42W11 keyboard controller is programmed to support the IBM® compatible personal computer keyboard serial interface. The keyboard controller receives serial data from the keyboard, checks the parity of the data, translates the scan code, and presents the data to the system as a byte of data in its output buffer. The controller will interrupt the system when data is placed in its output buffer. The byte of data will be sent to the keyboard serially with an odd parity bit automatically inserted. The keyboard is required to acknowledge all data transmissions. No transmission should be sent to the keyboard until acknowledgment is received for the previous byte sent.

The KBD42W11 keyboard controller and BIOS to improve the performance of IBM PC machines and their compatibles. A hardwire methodology is used in this keyboard controller instead of a software implementation, as in the traditional 8042 keyboard BIOS. This enables the keyboard controller to respond instantly to all commands sent from the keyboard to the CPU BIOS.

The KBD42W11 enables popular programs such as AutoCAD®, Microsoft® Windows™, NOVELL®, and other programs to run much faster.

IBM is a registered trademark of International Business Machines Corporation. AutoCAD is a registered trademark of Autodesk, Inc. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. NOVELL is a registered trademark of Novell, Inc.

Standard Microsystems is a registered trademark and SMSC is a trademark of Standard Microsystems Corporation. Other product and company names are trademarks or registered trademarks of their respective holders.
