KB8825

Features: • Two systems for receiver and transmitter• Very low operating current consumption: Icc = Typ. 5.5mA @ 3.0V• Low operating power supply voltage : 2.2 ~ 5.5V ( 200MHz ~ 550MHz Operating ) 2.7 ~ 3.6V ( 550MHz ~ 1.1GHz Operating )• Modulus pre-scaler: 64 / 66• ...

product image

KB8825 Picture
See larger image
SeekIC No. : 004384168 Detail

KB8825: Features: • Two systems for receiver and transmitter• Very low operating current consumption: Icc = Typ. 5.5mA @ 3.0V• Low operating power supply voltage : 2.2 ~ 5.5V ( 200MHz ~ 55...

KB8825 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KB8825
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two systems for receiver and transmitter
• Very low operating current consumption: Icc = Typ. 5.5mA @ 3.0V
• Low operating power supply voltage : 2.2 ~ 5.5V ( 200MHz ~ 550MHz Operating )
                                                               2.7 ~ 3.6V ( 550MHz ~ 1.1GHz Operating )
• Modulus pre-scaler: 64 / 66
• No dead-zone PFD
• Colpitt type local oscillation
• Selectable charge pump current
• Selectable power down mode
• TSSOP 16-pin package (0.65 mm pitch)


Application

• Cordless telephone systems
• Portable wireless communications (PCS)
• Wireless Local Area Networks (WLANs)
• Other wireless communication systems


Pinout

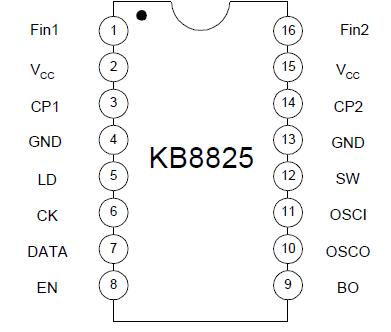

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Power Supply Voltage
VCC
6
V
Power Dissipation
PD
600
mW
Operating Temperature
TOPR
-20 ~ + 85
°C
Storage Temperature
TSTG
- 55 ~ + 150
°C



Description

The KB8825 is a high performance dual frequency synthesizer with two integrated high frequency pre-scalers for RF operation up to 1.1 GHz.

The KB8825 is composed of modulus pre-scalers providing 64 and 66, no dead-zone PFD, selectable charge pump current, selectable power down mode circuits, lock detector output, and loop filter's time constant switch.

The KB8825 is fabricated using the ASP5HB Bi-CMOS process and is available 16-TSSOP with surface mount plastic packaging. Serial data is transferred into the KB8825 via three-wire interface (CK, DATA, EN).
