Features: · Maximum Operating Voltage : 9.0V· Dropout Voltage : 160mV @ 100mA : 400mV @ 200mA· Output Current : more than 300mA (type)· Highly Accurate : ± 2%· Low Power Consumption.· Low ESR Capacitor can be usedApplication·Battery powered equipment·Reference voltage sources·Cameras, Video camera...

See larger image

SeekIC No. : 004384133 Detail

KB6206: Features: · Maximum Operating Voltage : 9.0V· Dropout Voltage : 160mV @ 100mA : 400mV @ 200mA· Output Current : more than 300mA (type)· Highly Accurate : ± 2%· Low Power Consumption.· Low ESR Capaci...

KB6206 Data Sheet

Get Latest Price

Part Number:: KB6206
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

· Maximum Operating Voltage : 9.0V
· Dropout Voltage : 160mV @ 100mA : 400mV @ 200mA
· Output Current : more than 300mA (type)
· Highly Accurate : ± 2%
· Low Power Consumption.
· Low ESR Capacitor can be used

Application

·Battery powered equipment
·Reference voltage sources
·Cameras, Video cameras
·Portable AV systems
·Mobile phones
·Communication tools
·Portable games

Pinout

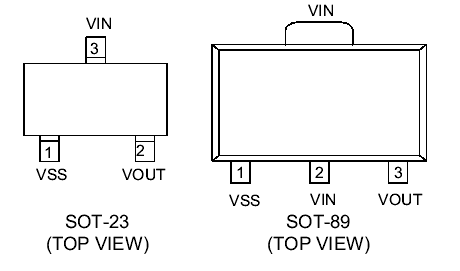

Connection Diagram

Specifications

PARAMETER		SYMBOL	DESCRIPTION	UNIT
Input Voltage		V_IN	9.0	V
Output Current		I_OUT	500	mA
Output Voltage		V_OUT	V_SS - 0.3 ~ V_IN + 0.3	V
Power Dissipation	SOT-23	P_d	250	mW
Power Dissipation	SOT-89	P_d	500	mW
Operating Ambient Temperature		T_opr	- 40 ~ + 85
Operating Ambient Temperature		T_stg	- 55 ~ + 125

Description

The KB6206 series are precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies.

The series provides large currents with a significantly small dropout voltage. The KB6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors.

The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 100mV increments within a range of 1.2V to 5.0V. SOT-23 (250mW) and SOT-89 (500mW) packages are available.
