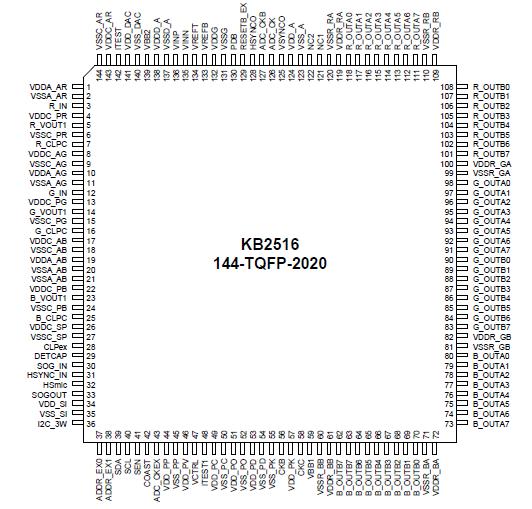

KB2516

·  Analog bandwidth of 500MHz
·  3 clamps for 256 programmable levels
·  3 programmable gain amplifiers
·  Analog input range: 0.5Vpp to 1.0Vpp
·  Triple 8-bit ADC
·  Sampling rate up to 140MHz
·  Fully integrated PLL to generate the ADC clock, which can be locked to a HSYNC
·  Integrated PLL divider
·  Programmable clock phase control (Fstep = 7.5°) Integrated SOG separator and HSYNC input polarity detector
·  Single and double pixel width output data bus
·  Support I²C and 3-wire serial interface
·  Power down mode
·  1.25W power dissipation

The KB2516 is a triple 8-bit analog-to-digital converter optimized for digitizing R/G/B graphics signal from PC and
workstation. Its 140MSPS encode rate capability and analog bandwidth of 500MHz supports support display resolution of up to SXGA (1280 ´ 1024) class. The IC KB2516 also includes a PLL (Phase Locked Loop) system that can be locked on horizontal line frequency, and generates the ADC clock.
