KB2512

(HORIZONTAL)
• Self-adaptive
• Dual PLL concept
• 150kHz maximum frequency
• X-RAY protection input
• I²C controls: Horizontal duty-cycle, H-position, free running frequency, frequency generator for burn-in mode.

(VERTICAL)
• Vertical ramp generator
• 50 to 185Hz AGC loop
• Geometry tracking with V-POS & V-AMP
• I2C Controls: V-AMP, V-POS, S-CORR, C-CORR
• DC breathing compensation (I²C GEOMETRY CORRECTIONS)
• Vertical parabola generator (pincushion-E/W, keystone, corner) 32-SDIP-400
• Horizontal dynamic phase (side pin balance & parallelogram)
• Vertical dynamic focus (Vertical focus amplitude)

(GENERAL)
• Sync processor
• 12V supply voltage
• Hor. & Vert. lock/unlock outputs
• Read/Write I2C interface
• Horizontal and vertical moire
• B+ Regulator
- Internal PWM generator for B+ current mode step-up converter.
- I²C adjustable B+ reference voltage
- Output pulses synchronized on horizontal

frequency
- Internal maximum current limitation.
- Soft start
• Compared with the KB2511B, KB2512 HAS:
- Corner correction
- Horizontal moire
- B+ soft start
- Increased max. Vertical frequency
- No horizontal focus
- No step down option for DC/DC converter.

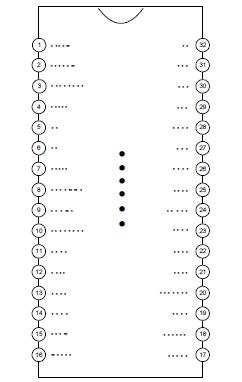

The KB2512 is a monolithic integrated circuit assembled in 32 pins shrunk dual in line plastic package. This IC KB2512 controls all the functions related to the horizontal and vertical deflection in multi modes or multifrequency computer display monitors.

The internal sync processor, combined with the very powerful geometry correction block make the KB2512 suitable for very high performance monitors with very few external components. The horizontal jitter level is very low. It is particularly well suited for high-end 17" and 19" monitors.
