KB15RKG01-05-EB, US $ 7.45-7.45, KB15RKG01-05-EB DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 004167090 Detail

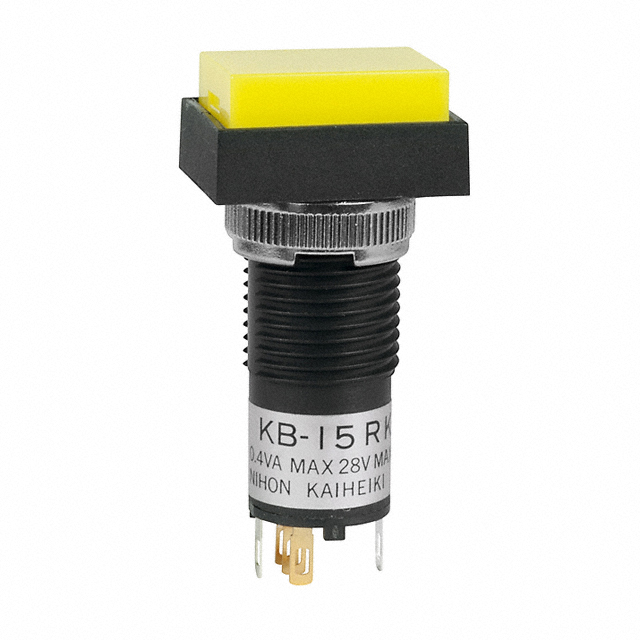

KB15RKG01-05-EB: SWITCH PUSH SPDT 0.4VA 28V

KB15RKG01-05-EB Data Sheet

US $ 7.45~7.45 / Piece | Get Latest Price

Part Number:: KB15RKG01-05-EB
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$7.45

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

KB156 evaluate
Features: Excellent linearityVery small plastic SMD packageVery low series resistanceSpecification...
KB15CKG01 evaluate
US $3.56 - 5.47 / Piece

Pushbutton Switches ON(ON) ROUND BUSHING MOUNT BODY ONLY
KB15CKG01-00-A evaluate
Pushbutton Switches SPDT ON (ON)

Product Details

Quick Details

Series:	KB	Manufacturer:	NKK Switches
Number of Receivers :	11	Type:	Standard, Illuminated
Circuit:	SPDT	Switch Function:	On-Mom
Current Rating:	0.4VA (AC/DC)	Voltage Rating - AC:	28V
Voltage Rating - DC:	28V	Actuator Type:	Rectangular, Button
Color - Actuator/Cap:	Yellow (White Filter/Diffuser)	Illumination Type, Color:	Incandescent, Yellow
Illumination Voltage (Nominal):	5 VAC	Mounting Type:	Panel Mount, Front
Termination Style:	Solder Lug	Ingress Protection:	-
Features:	-	Panel Cutout Dimensions:	Circular - 12.30mm Dia

Description

Ingress Protection: -
Features: -
Packaging: Bulk
Switch Function: On-Mom
Termination Style: Solder Lug
Current Rating: 0.4VA (AC/DC)
Circuit: SPDT
Voltage Rating - DC: 28V
Type: Standard, Illuminated
Actuator Type: Rectangular, Button
Mounting Type: Panel Mount, Front
Voltage Rating - AC: 28V
Manufacturer: NKK Switches
Panel Cutout Dimensions: Circular - 12.30mm Dia
Series: KB
Color - Actuator/Cap: Yellow (White Filter/Diffuser)
Illumination Type, Color: Incandescent, Yellow
Illumination Voltage (Nominal): 5 VAC

Parameters:

Technical/Catalog Information	KB15RKG01-05-EB
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Rectangular Button
Circuit	SPDT
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination Type, Color	Incandescent, Yellow
Illumination Voltage (Nominal)	5 VAC
Mounting Type	Panel Mount
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	KB15RKG01 05 EB KB15RKG0105EB
