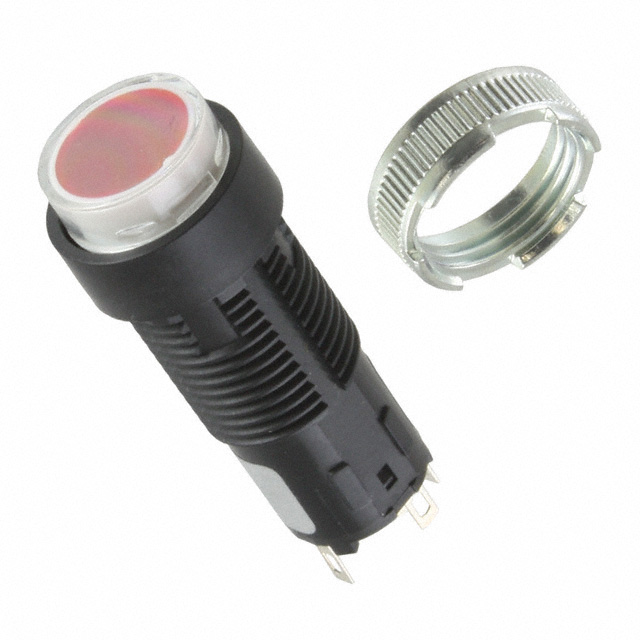

See larger image

SeekIC No. : 004165986 Detail

KB15CKW01-5C-JC: SWITCH PUSHBUTTON SPDT 1A 125V

KB15CKW01-5C-JC Data Sheet

US $ 3.75~6.64 / Piece | Get Latest Price

Part Number:: KB15CKW01-5C-JC
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250
250~500
500~1000
1000~5000

Unit Price
$6.64
$6.35
$5.48
$5.34
$4.76
$4.47
$3.95
$3.75

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

KB156 evaluate
Features: Excellent linearityVery small plastic SMD packageVery low series resistanceSpecification...
KB15CKG01 evaluate
US $3.56 - 5.47 / Piece

Pushbutton Switches ON(ON) ROUND BUSHING MOUNT BODY ONLY
KB15CKG01-00-A evaluate
Pushbutton Switches SPDT ON (ON)

Product Details

Quick Details

Series:	KB	Manufacturer:	NKK Switches
Number of Receivers :	11	Type:	Standard, Illuminated
Circuit:	SPDT	Switch Function:	On-Mom
Current Rating:	1A (AC/DC)	Voltage Rating - AC:	125V
Voltage Rating - DC:	30V	Actuator Type:	Round, Button
Color - Actuator/Cap:	Clear (Red Filter/Diffuser)	Illumination Type, Color:	LED, Red
Illumination Voltage (Nominal):	1.9 VDC	Mounting Type:	Panel Mount, Front
Termination Style:	Solder Lug	Ingress Protection:	-
Features:	-	Panel Cutout Dimensions:	Circular - 12.30mm Dia

Description

Ingress Protection: -
Features: -
Packaging: Bulk
Switch Function: On-Mom
Voltage Rating - AC: 125V
Actuator Type: Round, Button
Termination Style: Solder Lug
Circuit: SPDT
Type: Standard, Illuminated
Mounting Type: Panel Mount, Front
Voltage Rating - DC: 30V
Illumination Type, Color: LED, Red
Current Rating: 1A (AC/DC)
Manufacturer: NKK Switches
Panel Cutout Dimensions: Circular - 12.30mm Dia
Series: KB
Color - Actuator/Cap: Clear (Red Filter/Diffuser)
Illumination Voltage (Nominal): 1.9 VDC

Parameters:

Technical/Catalog Information	KB15CKW01-5C-JC
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Round Button
Circuit	SPDT
Contact Rating @ Voltage	1A @ 125VAC
Illumination Type, Color	LED, Red
Illumination Voltage (Nominal)	1.9 VDC
Mounting Type	Panel Mount
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	KB15CKW01 5C JC KB15CKW015CJC 360 1619 ND 3601619ND 360-1619
