KAD2710C

Features: • On-chip reference• Internal track and hold• 1.5VPP differential input voltage• 600MHz analog input bandwidth• Two's complement or binary output• Over-range indicator• Selectable ÷2 Clock Input• LVCMOS outputsApplication• High-Perfor...

product image

KAD2710C Picture
See larger image
SeekIC No. : 004383863 Detail

KAD2710C: Features: • On-chip reference• Internal track and hold• 1.5VPP differential input voltage• 600MHz analog input bandwidth• Two's complement or binary output• Over-...

KAD2710C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KAD2710C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-chip reference
• Internal track and hold
• 1.5VPP differential input voltage
• 600MHz analog input bandwidth
• Two's complement or binary output
• Over-range indicator
• Selectable ÷2 Clock Input
• LVCMOS outputs


Application

• High-Performance Data Acquisition
• Portable Oscilloscope
• Medical Imaging
• Cable Head Ends
• Power-Amplifier Linearization
• Radar and Satellite Antenna Array Processing
• Broadband Communications
• Local Multipoint Distribution System (LMDS)
• Communications Test Equipment


Pinout

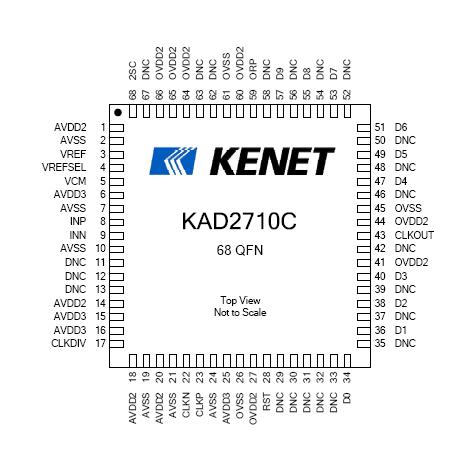

Connection Diagram


Specifications

Parameter Min Max Unit
AVDD to AVSS -0.4 2.1 V
OVDD to OVSS -0.4 2.1 V
AVSS to OVSS -0.4 0.3 V
Analog Inputs to AVSS -0.4 AVDD3 + 0.3 V
Clock Inputs to AVSS -0.4 AVDD2 + 0.3 V
Logic Input to AVSS -0.4 AVDD3 + 0.3 V
Logic Inputs to OVSS -0.4 OVDD2 + 0.3 V
VREF TO AVSS -0.4 AVDD3 + 0.3 V
Analog Output Currents   10 mA
Logic Output Currents   10 mA
LVDS Output Currents   20 mA
Operating Temperature -40 85 °C
Storage Temperature -65 150 °C
Junction Temperature   150 °C
1. Exposing the device to levels in excess of the maximum ratings may cause permanent damage. Exposure to maximum conditions for extended periods may affect device reliability.



Description

The Kenet KAD2710C is the industry's lowest power, 10-bit , high performance Analog-to-Digital converter. The converter KAD2710C runs at sampling rates up to 275MSPS, and is fabricated with Kenet's proprietary FemtoCharge® CMOS technology. Users can now obtain industry-leading SNR and SFDR specifications while nearly halving power consumption. Sampling rates of 210, 170 and 105MSPS are also available in the same pincompatible package and in versions with 8-bit resolution. Kenet's KAD2710L offers this performance with LVDS outputs. All are available in 68-pin RoHScompliant QFN packages with exposed paddle. Performance is specified over the full industrial temperature range (-40 to +85°C).
