KA9260D

Features: • 1 phase, full-wave, linear DC motor driver• Built-in TSD (Thermal shutdown) circuit• Built-in 5V regulator (With an external PNP transistor)• Built-in mute circuit• Built-in loading motor speed control circuit• Wide operating supply voltage range: 6V...

product image

KA9260D Picture
See larger image
SeekIC No. : 004383844 Detail

KA9260D: Features: • 1 phase, full-wave, linear DC motor driver• Built-in TSD (Thermal shutdown) circuit• Built-in 5V regulator (With an external PNP transistor)• Built-in mute circui...

KA9260D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KA9260D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1 phase, full-wave, linear DC motor driver
• Built-in TSD (Thermal shutdown) circuit
• Built-in 5V regulator (With an external PNP transistor)
• Built-in mute circuit
• Built-in loading motor speed control circuit
• Wide operating supply voltage range: 6V~13.2V


Application

• Compact disk player (CDP)
• Video compact disk player (VCD)
• Automotive compact disk player (CDP)
• Other compact disk media


Pinout

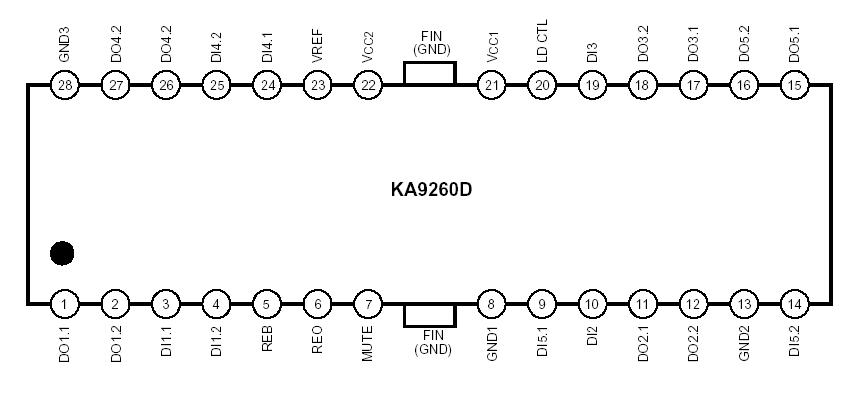

Connection Diagram


Specifications

Characteristics Symbol Rating Unit
Maximum supply voltage

Power dissipation

Operating temperature

Storage temperature

Maximum current output		 VCC MAX

PD

TOPR

TSTG

IOMAX		 18

1.7note

−25 ~ +75

−55 ~ +150

1		 V

W

°C

°C

A

NOTE:
1. When mounted on 76mm × 114mm × 1.57mm PCB (Phenolic resin material).
2. Power dissipation reduces 13.6mW / °C for using above Ta=25°C.
3. Do not exceed Pd and SOA (Safe Operating Area).




Description

The KA9260D is a monolithic integrated circuit, suitable for 5-ch motor driver which drives focus actuator, tracking actuator, sled motor, spindle motor and loading motor of CD system.
