Slew Rate
:
Output Current
:
Number of Channels
: 2
Packaging
: Tube
Input Offset Voltage
: 3 mV
Shutdown
: No
Common Mode Rejection Ratio (Min)
: 65 dB
Input Bias Current (Max)
: 100 nA
Mounting Style
: Through Hole
Maximum Operating Temperature
: + 70 C
Operating Supply Voltage
: 5 V, 9 V, 12 V, 15 V
Package / Case
: DIP-8
Features: • Internally Frequency Compensated for Unity Gain
• Large DC Voltage Gain: 100dB
• Wide Power Supply Range:
KA258/KA258A, KA358/KA358A: 3V ~ 32V (or ±1.5V~ 16V)
KA2904 : 3V~26V (or ±1.5V ~ 13V)
• Input Common Mode Voltage Range Includes Ground
• Large Output Voltage Swing: 0V DC to Vcc - 1.5V DC

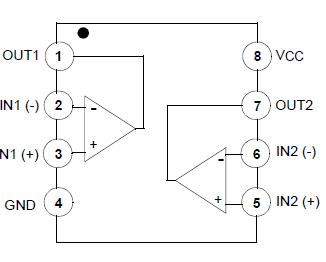

• Power Drain Suitable for Battery Operation.Pinout
Specifications
| Parameter |
Symbol |
KA258/KA258A |
KA358/KA358A |
KA2904 |
Unit |
| Power Supply Voltage |
VCC |
±16 or 32 |
±13 or 32 |
±13 or 26 |
V |
| Differential Input Voltage |
VI(DIFF) |
32 |
32 |
26 |
V |
| Input Voltage |
VI |
-0.3 to +32 |
-0.3 to +32 |
-0.3 to +26 |
V |
Output Short Circuit to GND
Vcc15V, TA=25°C(One Amp) |
- |
Continuous |
Continuous |
Continuous |
- |
| Operating Temperature Range |
TOPR |
-25 ~ +85 |
0 ~ +70 |
40 ~ +85 |
|
| Storage Temperature Range |
TSTG |
-65 ~ +150 |
-65 ~ +150 |
-65 ~ +150 |
|
DescriptionThe KA258 series consist of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltage. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifier, DC gain blocks and all the conventional OP-AMP circuits which now can be easily implemented in single power supply systems.
Parameters: | Technical/Catalog Information | KA358A |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 - Dual |
| Package / Case | 8-DIP |
| Slew Rate | - |
| Gain Bandwidth Product | - |
| Current - Supply | 800A |
| Current - Output/Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 32 V, ±1.5 V ~ 16 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 45nA |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Input Offset | 2000V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | KA358A
KA358A
|
