KA3505

Supervisory Circuits PC SMPS Sup. IC

product image

KA3505 Picture
SeekIC No. : 00582488 Detail

KA3505: Supervisory Circuits PC SMPS Sup. IC

floor Price/Ceiling Price

Part Number:
KA3505
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Voltages Monitored : 1 Monitored Voltage : 3.3 V, 5 V, 12 V
Manual Reset : Not Resettable Watchdog : No Watchdog
Supply Voltage - Max : 30 V Supply Voltage - Min : 15 V
Supply Current (Typ) : 10000 uA Maximum Power Dissipation : 1000 mW
Maximum Operating Temperature : + 85 C Mounting Style : Through Hole
Package / Case : DIP-16 Packaging : Tube

Description

Undervoltage Threshold :
Overvoltage Threshold :
Output Type :
Battery Backup Switching :
Power-Up Reset Delay (Typ) :
Manual Reset : Not Resettable
Maximum Operating Temperature : + 85 C
Number of Voltages Monitored : 1
Watchdog : No Watchdog
Packaging : Tube
Supply Current (Typ) : 10000 uA
Mounting Style : Through Hole
Monitored Voltage : 3.3 V, 5 V, 12 V
Maximum Power Dissipation : 1000 mW
Package / Case : DIP-16
Supply Voltage - Max : 30 V
Supply Voltage - Min : 15 V


Features:

• PC Power Supply Output Monitor Circuitry
• Few External Components
• Over Voltage Protection for 3.3V/5V/12V Output
• Under Voltage Protection for 3.3V/5V/12V Output With Delay Time
• Over Current Protection for 3.3V/5V/12V Output With Delay Time
• Fault Protection Output With Open Collector Output
• Power Supply on/off Delay Time Control (PSON)
• Power Good Signal Generator With Hysteresis
• Open Collector PG Output
• 300ms Power Good Delay
• Current Sense Setting Function With RI
• Latch Function Controlled by PSON and Protection Input
• 16-Pin Dual In-line Package

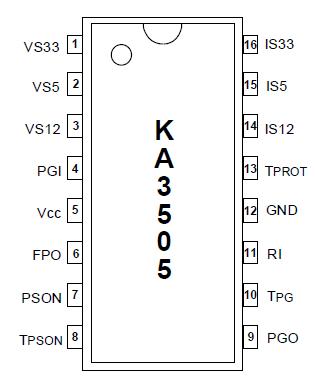

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply Voltage
VCC
15 ~ 30
V
Input Voltage
Vinput
30
V
FPO Voltage
VFPO
30
V
FPO Maximum Current
IFPO
20
mA
Operating Temperature
Topr
-20 ~ +85
°C
Storage Temperature Range
Tstg
-65 ~ +150
°C
Power Dissipation
PD
1
W



Description

The KA3505 is complete output supervisory circuitry intended for use in the secondary side of the switched mode power supply. It provides all the functions necessary to monitor and control the output of the power supply system. Power good signal generator, Remote on and off control, some precision protection features against over-voltage, under-voltage and over-current are implemented. It directly senses all the output rails for OVP and UVP without any external dividers. As for output control, Power Good Output (PGO) and Fault Protection Output (FPO) are also included. Utilizing a minimum number of external components, the KA3505 offers a simple and cost effective solution, greatly reducing PCB board space for power supply system.




Parameters:

Technical/Catalog InformationKA3505
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Type-
Voltage - Supply15 V ~ 30 V
Current - Supply5mA
Voltage - Input-
Package / Case16-DIP
PackagingTube
ApplicationsPower Supply, Supervisor
Operating Temperature-25°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names KA3505
KA3505
