KA3022D3

Motor / Motion / Ignition Controllers & Drivers Motor Driver 3Ch BTL+1Ch DC

product image

KA3022D3 Picture
See larger image
SeekIC No. : 00534242 Detail

KA3022D3: Motor / Motion / Ignition Controllers & Drivers Motor Driver 3Ch BTL+1Ch DC

KA3022D3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KA3022D3
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : 4 Channel Motor Driver Operating Supply Voltage : 4.5 V to 13.2 V
Supply Current : 15 A Mounting Style : SMD/SMT
Package / Case : SSOPH-28 Packaging : Tube

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tube
Type : 4 Channel Motor Driver
Package / Case : SSOPH-28
Operating Supply Voltage : 4.5 V to 13.2 V
Supply Current : 15 A


Features:

• 3-Channel Balanced TransformerLess(BTL) driver
• 1-Channel forward-Reverse control DC motor driver
• Built-in thermal shutdown circuit
• Built-in mute circuit
• Operating supply voltage: 4.5~13.2V
• Corresponds to 3.3V or 5V DSP


Application

• Compact disk ROM (CD-ROM)
• Compact disk RW (CD-RW)
• Digital video disk ROM (DVD-ROM)
• Digital video disk RAM (DVD-RAM)
• Digital video disk Player (DVDP)
• Other compact disk media

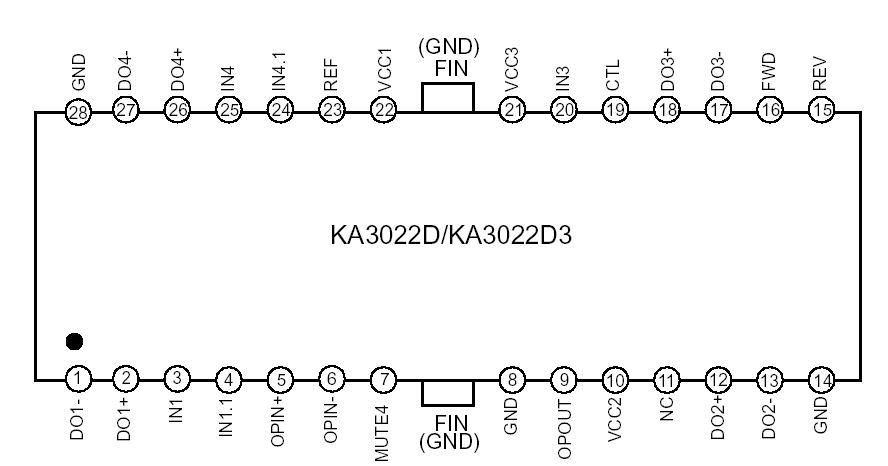

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Maximum supply voltage VCCMAX 15 V
Power dissipation(KA3022D) PD 1.7note1 mW
Power dissipation(KA3022D3) PD 2.5note2 mW
Operating temperature TOPR -35 ~ +85 °C
Storage Temperature Range TSTG −55 ~ 150 °C
NOTE1:
1. When mounted on a 50mm × 50mm × 1mm PCB (Phenolic resin material).
2. Power dissipation reduces 13.6mW/°C for using above Ta = 25°C
3. Do not exceed PD and SOA(Safe operating area).


Description

The KA3022D/KA3022D3 is a monolithic IC, suitable for a 1-ch (forward.reverse) control DC motor driver and a 3-ch motor driver which drives the focus actuator,tracking actuator, and sled motor of a CD-media system.
