SMP Circuit
• 3 phase sensorless BLDC motor driver with speed discriminator
• Built-in start-up circuit with WSS (Waltz step start) method
• Suitable for high and middle end set
(Max. output current: 2A)
• Built-in dynamic brake circuit
Vcm Circuit
• High output current driver with external NPN & PNP transistors. (Max. output current: 2A)
• No crossover distortion
• Low offset current
Other
• Low standby current
• Built-in precision power detector circuit
• Built-in TSD(Thermal Shut Down) circuit
Parameter |
Symbol |
Value |
Unit |
Maximum supply voltage |
VCC1MAX, VCC1MAX |
15.0 |
V |
Maximum logic part supply voltage 2 |
VCC3MAX (VDD) |
7.0 |
V |
Power dissipation |
PD |
3.0 |
A |
Maximum output drive current |
IOMAX |
2.0 |
W |
Logic control input voltage |
VIN |
-3.0 ~ VCC3 |
V |
Operating temperature range |
TOPR |
0 ~ 70 |
°C |
Soldering temperature (5 seconds, 1/4 inch from pin) |
TSOLD |
300 |
°C |
Storage temperature range |
TSTG |
-55 ~ 150 |
°C |
Notes:
1. Absolute maximum ratings are values beyond which the device may be damaged permanently. Normal operation is not guaranteed at or above those extremes.
2. All voltages are measured with respect to the GND voltage level unless otherwise specified.
3. When mounted on 50mm × 50mm × 1mm PCB (Phenolic resin material).
4. Do not exceed Pd and SOA(Safe Operation Area).

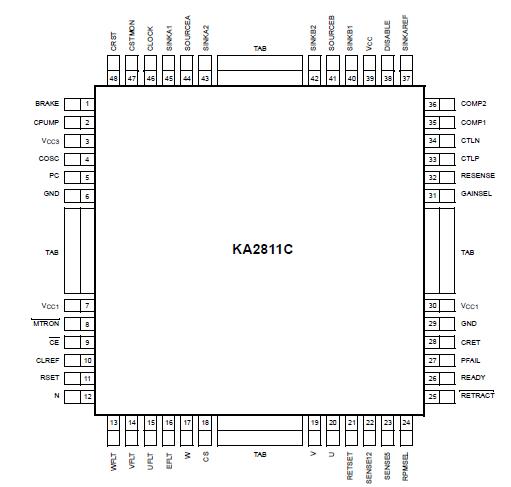

The KA2811C is a monolithic one-chip IC which includes SPM (Spindle motor) driver, VCM (Voice coil motor) driver and peripheral driver, designed for driving HDD motor. For high starting torque and high speed, SPM circuit employes WSS (Waltz step start) method for starting the motor and can drive up to 2A. VCM circuit is designed to drive up to 1.5A to meet the trends of HDD'S high speed. (Requires external transistors).
