KA248

Operating Supply Voltage :
Output Current :
Packaging : Tube
Input Offset Voltage : 6 mV
Number of Channels : 4
Slew Rate : 0.5 V/us
Shutdown : No
Common Mode Rejection Ratio (Min) : 70 dB
Maximum Operating Temperature : + 85 C
Mounting Style : Through Hole
Input Bias Current (Max) : 200 nA
Package / Case : DIP-14


Features:

• KA741 OP Amp operating characteristics
• Low supply current drain
• Class AB output stage no crossover distortion
• Pin compatible with the KA324 & KA3403
• Low input offset voltage : 1mV Typ.
• Low input offset current : 4nA Typ.
• Low input bias current : 30nA Typ.
• Gain bandwidth (unity gain): 1.0MHz Typ.
• High degree of isolation between amplifiers: 120dB
• Overload protection for inputs and outputs

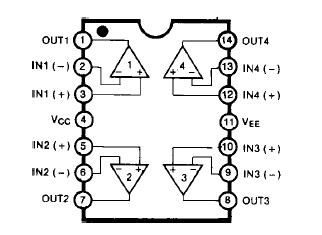

Pinout




Specifications

Parameter	Symbol	Value	Unit
Supply Voltage	VCC	±18	V
Differential Input Voltage	VI(DIFF)	36	V
Input Voltage	VI	±18	V
Output Short Circuit Duration	-	Continuous	-
Operating Temperature KA248 KA348	TOPR	- 25 ~ +85 0~ +70
Storage Temperature Range	TSTG	-65 ~ +150

Description

The KA248/KA348 is a true quad KA741. It consists of four independent, high gain, internally compensated, low power operational amplifiers which have been designed to provide functional characteristics identical to those of the familiar KA741 operational amplifier. In addition the total supply current for all four amplifiers is comparable to the supply current of a single KA741 type OP Amp. Other features include input offset currents and input bias current which are much less than those of a standard KA741. Also, excellent isolation between amplifiers has been achieved by independently biasing each amplifier and using layout techniques which minimize thermal coupling.
