Product Details

Description



Features:

· Lower operation voltage: VCC=9V
· Available Multi system (PAL/NTSC/SECAM) with SECAM decoder
· Minimum number of external parts required
· Small package type: 54 SDlP
· Suitable OSD interface
· Available 50/60 Hz auto switch
· Built in Delay Line for video sharpness

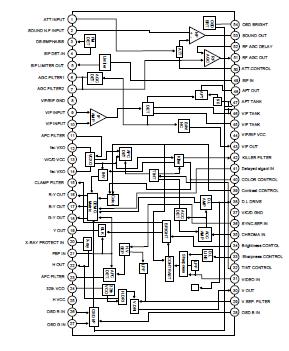

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Supply Voltage
VCCmax
12
V
Supply current
ICCmax
175
mA
Power dissipation
PDmax
2.1
W
Operating Temperature
TOPR
-20~+70
Storage Temperature
TSTG
-55~+150



Description

The KA2161 combines an IF system and a video/chroma/deflection on a monolithic integrated circuit to provide a PAL/NTSC color television.

This KA2161 is suitable to a muiti-CTV svstem on a 54 SDIP and includes VI F/SIF, videc/chroma/deflection processor.
