Product Details

Description



Features:

· Voltage Supply
- 1.8V device(K9F1208Q0B) : 1.70~1.95V
- 2.65V device(K9F1208D0B) : 2.4~2.9V
- 3.3V device(K9F1208U0B) : 2.7 ~ 3.6 V
· Organization
- Memory Cell Array : (64M + 2048K)bit x 8 bit
- Data Register : (512 + 16)bit x 8bit
· Automatic Program and Erase
- Page Program : (512 + 16)Byte
- Block Erase : (16K + 512)Byte
· Page Read Operation
- Page Size : (512 + 16)Byte
- Random Access : 15ms(Max.)
- Serial Page Access : 50ns(Min.)
· Fast Write Cycle Time
- Program time : 200ms(Typ.)
- Block Erase Time : 2ms(Typ.)
· Command/Address/Data Multiplexed I/O Port
· Hardware Data Protection
- Program/Erase Lockout During Power Transitions
· Reliable CMOS Floating-Gate Technology
- Endurance : 100K Program/Erase Cycles
- Data Retention : 10 Years
· Command Register Operation
· Intelligent Copy-Back
· Unique ID for Copyright Protection
· Package
- K9F1208X0B-YCB0/YIB0
48 - Pin TSOP I (12 x 20 / 0.5 mm pitch)
- K9F1208X0B-GCB0/GIB0
63- Ball FBGA (8.5 x 13 , 1.0 mm width)
- K9F1208U0B-VCB0/VIB0
48 - Pin WSOP I (12X17X0.7mm)
- K9F1208X0B-PCB0/PIB0
48 - Pin TSOP I (12 x 20 / 0.5 mm pitch)- Pb-free Package
- K9F1208X0B-JCB0/JIB0
63- Ball FBGA - Pb-free Package
- K9F1208U0B-FCB0/FIB0
48 - Pin WSOP I (12X17X0.7mm)- Pb-free Package
* K9F1208U0B-V,F(WSOPI ) is the same device as
K9F1208U0B-Y,P(TSOP1) except package type.

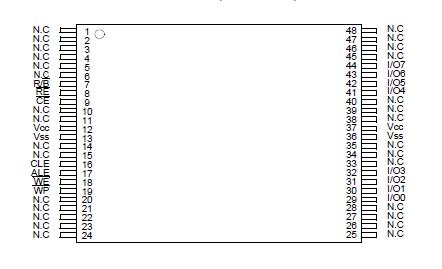

Pinout

  Connection Diagram


Specifications

Parameter Symbol Rating Unit
1.8V DEVICE 3.3V/2.65V DEVICE
Voltage on any pin relative to VSS VIN/OUT -0.6 to + 2.45 -0.6 to + 4.6 V
VCC -0.6 to + 2.45 -0.6 to + 4.6
VCCQ -0.6 to + 2.45 -0.6 to + 4.6
Temperature Under Bias K9F1208X0B-XCB0 TBIAS -10 to +125
K9F1208X0B-XIB0 -40 to +125
Storage Temperature K9F1208X0B-XCB0 TSTG -65 to +150
K9F1208X0B-XIB0
Short Circuit Current IOS 5 mA

NOTE :
1. Minimum DC voltage is -0.6V on input/output pins. During transitions, this level may undershoot to -2.0V for periods <30ns. Maximum DC voltage on input/output pins is VCC,+0.3V which, during transitions, may overshoot to VCC+2.0V for periods <20ns.
2. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to the conditions as detailed in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

Offered in 64Mx8bit the K9F1208Q0B is 512M bit with spare 16M bit capacity. The K9F1208Q0B is offered in 1.8V, 2.65V, 3.3V Vcc. Its NAND cell K9F1208Q0B provides the most cost-effective solutIon for the solid state mass storage market. A program operation can be performed in typical 200ms on the 528-byte page and an erase operation can be performed in typical 2ms on a 16K-byte block. Data in the page  can be read out at 50ns  cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command input. The on-chip write control automates all program and erase functions including pulse repetition, where required, and internal verification and margining of data. Even the write-intensive systems can take advantage of the K9F1208Q0B extended reliability of 100K program/erase cycles by providing ECC(Error Correcting Code) with real time mapping-out algorithm. The K9F1208Q0B is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.
