K6T0808C1D

Features: · Process Technology : TFT· Organization : 32Kx8· Power Supply Voltage : 4.5~5.5V· Low Data Retention Voltage : 2V(Min)· Three state output and TTL Compatible· Package Type : 28-DIP-600B, 28-SOP-450 28-TSOP1-0813.4 F/RPinoutSpecifications Item Symbol Ratings Unit Remark Volta...

product image

K6T0808C1D Picture
See larger image
SeekIC No. : 004383202 Detail

K6T0808C1D: Features: · Process Technology : TFT· Organization : 32Kx8· Power Supply Voltage : 4.5~5.5V· Low Data Retention Voltage : 2V(Min)· Three state output and TTL Compatible· Package Type : 28-DIP-600B, ...

K6T0808C1D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
K6T0808C1D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Process Technology : TFT
· Organization : 32Kx8
· Power Supply Voltage : 4.5~5.5V
· Low Data Retention Voltage : 2V(Min)
· Three state output and TTL Compatible
· Package Type : 28-DIP-600B, 28-SOP-450 28-TSOP1-0813.4 F/R


Pinout

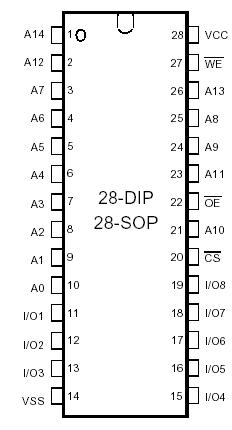

Connection Diagram


Specifications

Item Symbol Ratings Unit Remark
Voltage on any pin relative to Vss VIN,VOUT -0.5 to 7.0 V -
Voltage on Vcc supply relative to Vss VCC -0.5 to 7.0 V -
Power Dissipation PD 1.0 W -
Storage temperature TSTG -65 to 150 °C -
Operating Temperature TA 0 to 70 °C K6T0808C1D-L
-40 to 85 °C K6T0808C1D-P
Soldering temperature and time TSOLDER 260°C, 10sec(Lead Only) - -

1. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. Functional operation should be restricted to recommended operating condition. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The K6T0808C1D families are fabricated by SAMSUNG¢s advanced CMOS process technology. The families support various operating temperature ranges and have various package types for user flexibility of system design. The families also support low data retention voltage for battery backup operation with low data retention current.
