K6R4016C1D

Features: • Fast Access Time 10ns(Max.)• Low Power Dissipation Standby (TTL) : 20mA(Max.) (CMOS) : 5mA(Max.) Operating K6R4016C1D-10 : 65mA(Max.)• Single 5.0V±10% Power Supply• TTL Compatible Inputs and Outputs• Fully Static Operation - No Clock or Refresh required...

product image

K6R4016C1D Picture
See larger image
SeekIC No. : 004383201 Detail

K6R4016C1D: Features: • Fast Access Time 10ns(Max.)• Low Power Dissipation Standby (TTL) : 20mA(Max.) (CMOS) : 5mA(Max.) Operating K6R4016C1D-10 : 65mA(Max.)• Single 5.0V±10% Power Supply̶...

K6R4016C1D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
K6R4016C1D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast Access Time 10ns(Max.)
• Low Power Dissipation
   Standby (TTL) : 20mA(Max.)
                 (CMOS) : 5mA(Max.)
   Operating K6R4016C1D-10 : 65mA(Max.)
• Single 5.0V±10% Power Supply
• TTL Compatible Inputs and Outputs
• Fully Static Operation
   - No Clock or Refresh required
• Three State Outputs
• Center Power/Ground Pin Configuration
• Data Byte Control : LB : I/O1~ I/O8, UB : I/O9~ I/O16
• Standard Pin Configuration
                K6R4016C1D-J : 44-SOJ-400
                K6R4016C1D-K : 44-SOJ-400(Lead-Free)
                K6R4016C1D-T : 44-TSOP2-400BF
                K6R4016C1D-U : 44-TSOP2-400BF (Lead-Free)
                K6R4016C1D-E : 48-TBGA with 0.75 Ball pitch (7mm X 9mm)
• Operating in Commercial and Industrial Temperature range.

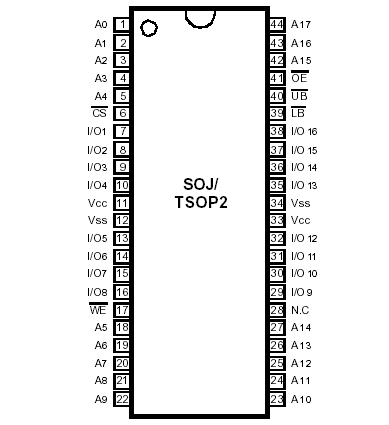

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
-0.5 to VCC+0.5
V
Voltage on VCC Supply Relative to VSS
VCC
-0.5 to 7.0
V
Power Dissipation
Pd
1.0
W
Storage Temperature
TSTG
65 to 150
Operating Temperature
Commercial
TA
0 to 70
Industrial
TA
-40 to 85

* Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
   device. This is a stress rating only and functional operation of the device at these or any other conditions
   above  those indicated in the operating sections of this specification is not implied. Exposure to absolute
   maximum  rating conditions for extended periods may affect reliability.




Description

The K6R4016C1D is a 4,194,304-bit high-speed Static Random Access Memory organized as 262,144 words by 16 bits. The K6R4016C1D uses 16 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. Also it allows that lower and upper byte access by data byte control(UB,LB). The device is fabricated using SAMSUNG¢s advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The K6R4016C1D is packaged in a 400mil 44-pin plastic SOJ or TSOP(II) forward or 48 T BGA.
