K4H560838E-LB0

Features: • Double-data-rate architecture; two data transfers per clock cycle• Bidirectional data strobe(DQS)• Four banks operation• Differential clock inputs(CK and CK)• DLL aligns DQ and DQS transition with CK transition• MRS cycle with address key programs -....

product image

K4H560838E-LB0 Picture
See larger image
SeekIC No. : 004382803 Detail

K4H560838E-LB0: Features: • Double-data-rate architecture; two data transfers per clock cycle• Bidirectional data strobe(DQS)• Four banks operation• Differential clock inputs(CK and CK)̶...

K4H560838E-LB0 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
K4H560838E-LB0
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Double-data-rate architecture; two data transfers per clock cycle
• Bidirectional data strobe(DQS)
• Four banks operation
• Differential clock inputs(CK and CK)
• DLL aligns DQ and DQS transition with CK transition
• MRS cycle with address key programs
   -. Read latency 2, 2.5 (clock)
   -. Burst length (2, 4, 8)
   -. Burst type (sequential & interleave)
• All inputs except data & DM are sampled at the positive going edge of the system clock(CK)
• Data I/O transactions on both edges of data strobe
• Edge aligned data output, center aligned data input
• DM for write masking only (x4, x8)
• Auto & Self refresh
• 7.8us refresh interval(8K/64ms refresh)
• Maximum burst refresh cycle : 8
• 66pin TSOP II package


Pinout

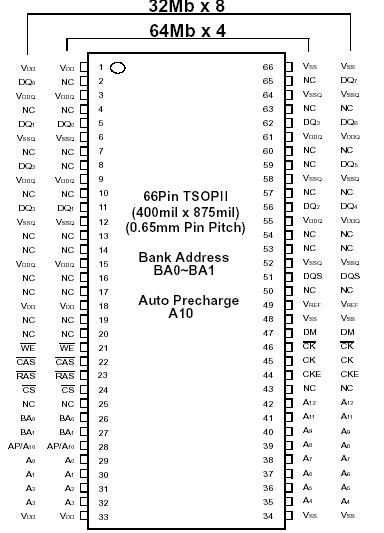

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VIN, VOUT -0.5 ~ 3.6 V
Voltage on VDD & VDDQ supply relative to VSS VDD, VDDQ -1.0 ~ 3.6 V
Storage temperature TSTG -55 ~ +150
Power dissipation PD 1.5 W
Short circuit current IOS 50 mA
