K1400E70

Sidacs 140V

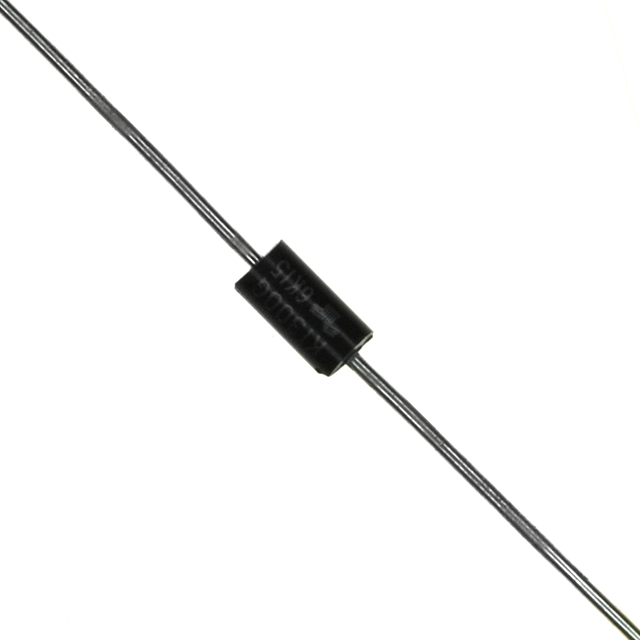

product image

K1400E70 Picture
SeekIC No. : 00199654 Detail

K1400E70: Sidacs 140V

floor Price/Ceiling Price

US $ .3~.5 / Piece | Get Latest Price
Part Number:
K1400E70
Mfg:
Littelfuse
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.5
  • $.42
  • $.35
  • $.3
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Breakover Voltage VBO : 130 V to 146 V Breakover Current IBO Max : 10 uA
Non Repetitive On-State Current : 16.7 A, 20 A Rated Repetitive Off-State Voltage VDRM : +/- 90 V
Off-State Leakage Current @ VDRM IDRM : 5 uA Holding Current (Ih Max) : 150 mA
On-State Voltage : 1.5 V Maximum Operating Temperature : + 85 C
Mounting Style : Through Hole Package / Case : TO-92-3

Description

Off-State Capacitance CO :
Off-State Leakage Current @ VDRM IDRM : 5 uA
Maximum Operating Temperature : + 85 C
Holding Current (Ih Max) : 150 mA
Mounting Style : Through Hole
Breakover Current IBO Max : 10 uA
Non Repetitive On-State Current : 16.7 A, 20 A
On-State Voltage : 1.5 V
Package / Case : TO-92-3
Rated Repetitive Off-State Voltage VDRM : +/- 90 V
Breakover Voltage VBO : 130 V to 146 V


Description

The K1400E70 is a silicon bilateral voltage triggered switch which has greater power-handling capabilities than standard diacs. Upon application of a voltage exceeding the sidac breakover voltage point,the sidac switches on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum holding current of the
device.

Features of the K1400E70 are:(1) AC circuit oriented;(2) glass-passivated junctions;(3) high surge current capability.

The applications of the K1400E70 can be summarized as:(1): high-voltage lamp ignitors;(2): natural gas ignitors;(3): high-voltage power supplies;(4): Xenon ignitors; (5): overvoltage protector;(6): pulse generators;(7): fluorescent lighting ignitors;(8): HID lighting ignitors.






Parameters:

Technical/Catalog InformationK1400E70
VendorLittelfuse / Teccor Brand Thyristors
CategoryDiscrete Semiconductor Products
Package / CaseTO-92
PackagingBulk
Voltage - Breakover130 ~ 146V
Current - Breakover10A
Current - Peak Output1A
Holding Current (Ih)*
Current - Hold (Ih) (Max)60mA
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names K1400E70
K1400E70
