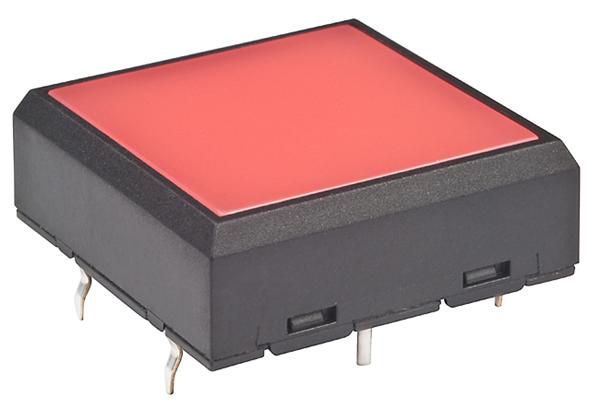

Tactile & Jog Switches SPST OFF-(ON) 50mA
JL15SKSCCP2-RO: Tactile & Jog Switches SPST OFF-(ON) 50mA
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Operating Force : | 3 N | Actuator : | Square |
Current Rating : | 50 mA | Voltage Rating DC : | 24 V |
Ground Terminal : | No | Contact Form : | SPST |
Switch Function : | OFF - (ON) | Mounting Style : | Through Hole |
Mounting Direction : | Straight | Stem Height : | 7.85 mm |
Illumination : | Illuminated |
Technical/Catalog Information | JL15SKSCCP2-RO |
Vendor | NKK Switches of America Inc |
Category | Switches |
Actuator Type | Square Button |
Circuit | SPST-NO |
Contact Rating @ Voltage | 0.05A @ 24VDC |
Mounting Type | Through Hole |
Operating Force | 300gf |
Orientation | Vertical |
Outline | 22.00mm x 22.00mm |
Switch Function | Off-Mom |
Illumination | Illuminated |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | JL15SKSCCP2 RO JL15SKSCCP2RO |
