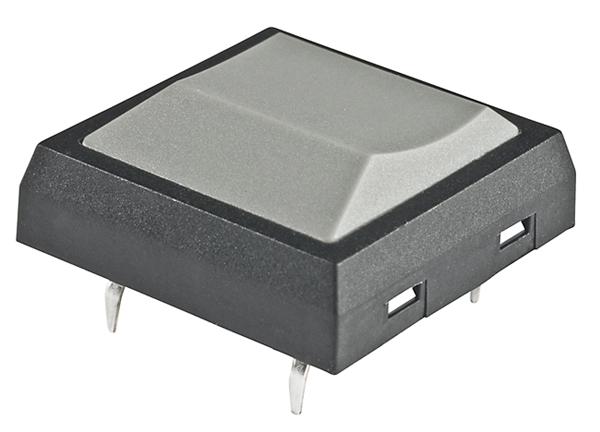

Tactile & Jog Switches SPST OFF (ON) GRAY
JF15SP3H: Tactile & Jog Switches SPST OFF (ON) GRAY
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Operating Force : | 1.96 N | Actuator : | Concave |
Current Rating : | 50 mA | Voltage Rating DC : | 24 V |
Ground Terminal : | No | Contact Form : | SPST |
Switch Function : | OFF - (ON) | Mounting Style : | Through Hole |
Mounting Direction : | Straight | Stem Height : | 8.68 mm |
Illumination : | Not Illuminated |
Technical/Catalog Information | JF15SP3H |
Vendor | NKK Switches of America Inc |
Category | Switches |
Actuator Type | Square Button |
Circuit | SPST-NO |
Contact Rating @ Voltage | 0.05A @ 24VDC |
Mounting Type | Through Hole |
Operating Force | 196gf |
Orientation | Vertical |
Outline | 17.70mm x 17.70mm |
Switch Function | Off-Mom |
Illumination | Non-Illuminated |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | JF15SP3H JF15SP3H |
