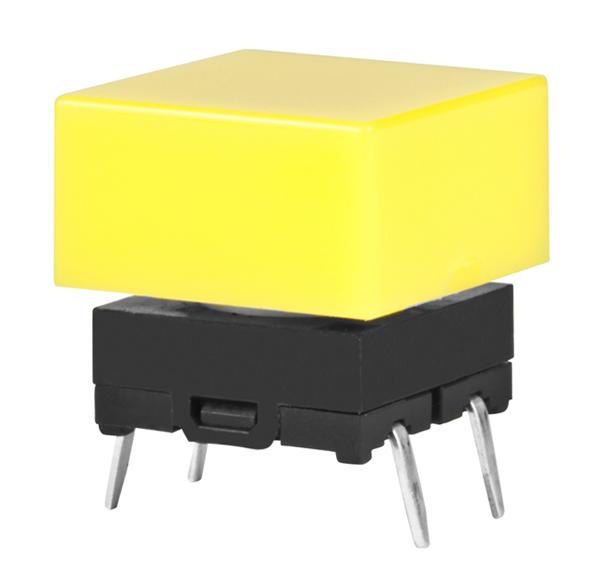

Tactile & Jog Switches OFF-(ON) PC MOUNT FLAT YELLOW CAP
JB15KP-2E: Tactile & Jog Switches OFF-(ON) PC MOUNT FLAT YELLOW CAP
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Operating Force : | 1.76 N | Actuator : | Round |
Current Rating : | 125 mA | Voltage Rating DC : | 24 V |
Ground Terminal : | No | Contact Form : | SPST |
Switch Function : | OFF - (ON) | Mounting Style : | Through Hole |
Mounting Direction : | Straight | Color : | Yellow |
Illumination : | Not Illuminated |
Technical/Catalog Information | JB15KP-2E |
Vendor | NKK Switches of America Inc |
Category | Switches |
Actuator Type | Square Button |
Circuit | SPST-NO |
Contact Rating @ Voltage | 0.05A @ 24VDC |
Mounting Type | Through Hole |
Operating Force | 176gf |
Orientation | Vertical |
Outline | 10.00mm x 10.00mm |
Switch Function | Off-Mom |
Illumination | Non-Illuminated |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | JB15KP 2E JB15KP2E |
