Tactile & Jog Switches EXTND BLACK MOMENTRY

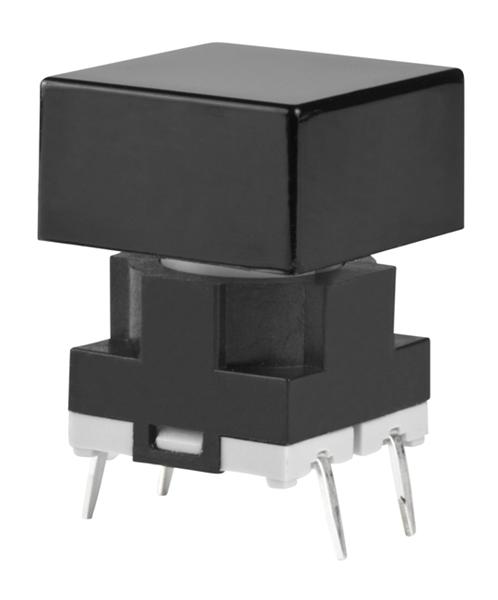

JB15HAP-2A: Tactile & Jog Switches EXTND BLACK MOMENTRY
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Operating Force : | 2.65 N | Actuator : | Round | ||
Current Rating : | 125 mA | Voltage Rating DC : | 24 V | ||
Ground Terminal : | No | Contact Form : | SPST | ||
Switch Function : | OFF - (ON) | Mounting Style : | Through Hole | ||
Mounting Direction : | Straight | Stem Height : | 0.7 mm | ||
Color : | Black | Illumination : | Not Illuminated |
Technical/Catalog Information | JB15HAP-2A |
Vendor | NKK Switches of America Inc |
Category | Switches |
Actuator Type | Square Button |
Circuit | SPST-NO |
Contact Rating @ Voltage | 0.125A @ 24VDC |
Mounting Type | Through Hole |
Operating Force | 265gf |
Orientation | Vertical |
Outline | 10.00mm x 10.00mm |
Switch Function | Off-Mom |
Illumination | Non-Illuminated |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | JB15HAP 2A JB15HAP2A |
